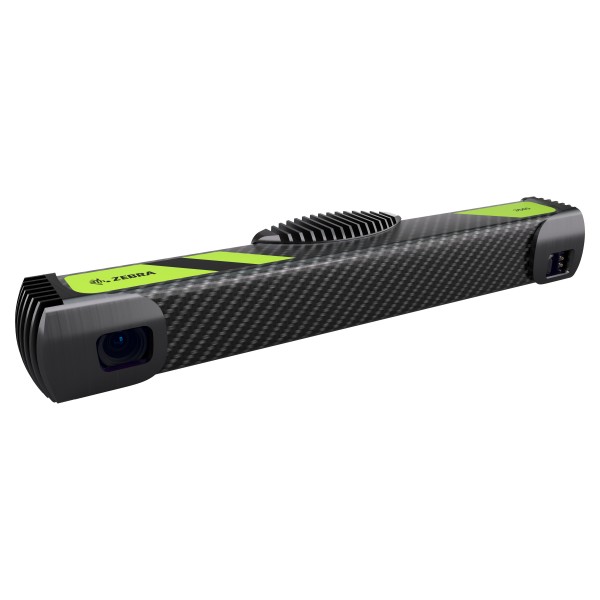

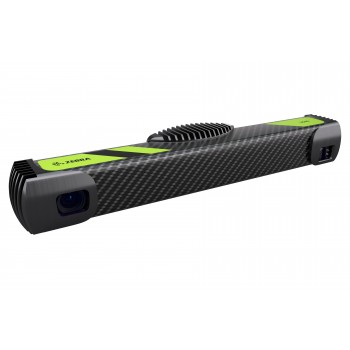

• Zebra 3S40 High-Resolution 3D Sensor

About: Zebra 3S40 High-Resolution 3D Sensor

Zebra 3S40 High-Resolution 3D Sensor offers a substantial 3D scanning volume, Zebra’s 3S40 3D sensor delivers unparalleled resolution and accuracy to enable depalletization as well as static dimensioning and inspection of oversized items. Structured light technology enables the 3S40 3D sensor to acquire 1.5 million points (1440 x 1080) in a 450-ms scan to provide highly detailed point clouds and true per-pixel measurement. The device’s ambient light suppression further optimizes results.

Zebra 3S40 3D sensor supports GigE Vision standards for plug-and-play integration with existing machine vision systems. Though 24V power is an option, the sensor’s PoE+ connector allows a single cable to provide both electric power and data connection. Users simply plug in and point the camera at a scene to begin capturing accurate high-density point clouds of static objects.

The 3S40 comes with Zebra’s Aurora Design Assistant™ or Aurora Vision Studio™ software, both of which enable the 3S40 to leverage a deep collection of tools for image capture, processing, analysis, annotation, display and archiving.

Model: 3S40

Write a review

Note: HTML is not translated!
   Bad           Good

Zebra 3S40 High-Resolution 3D Sensor

  • $0.00
