About: Yuan SC560N4 SDI-6G 4K PCIe Capture Card

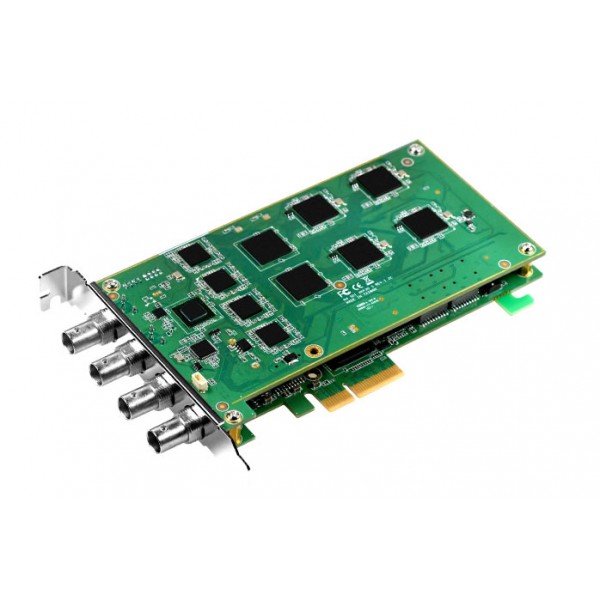

Yuan SC560N4 SDI-6G 4K PCIe Capture Card
Max. FPS
4096×2160p@30/25fps in → 4096×2160p@30/25fps out
Recording Mode
Software Compression, Real-Time Mode
Interface
PCIe×4 ( Gen2 )
Video Input
4×6G-SDI
Video RAW Data Resolution
6G-SDI
4096×2160@30/25/24fps
3840×2160@30/25/24fps
3G-SDI
1920×1080p@60/50fps
HD-SDI
1920×1080p@30/25/24fps
1920×1080i@60/50fps
1280×720p@60/50fps
SD-SDI
720×480i@60fps
720×576i@50fps
OS Support
Windows 7 / Windows 8 / Windows 8.1 / Windows 10
Linux 2.6.14 or Higher ( 32-bit and 64-bit )
Model: SC560N4 SDI-6G
Yuan SC560N4 SDI-6G 4K PCIe Capture Card
- Brands Yuan
- Product Code:SC560N4 SDI-6G
- Availability:In Stock
-
$1,599.00
