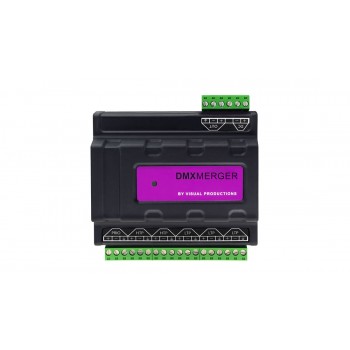

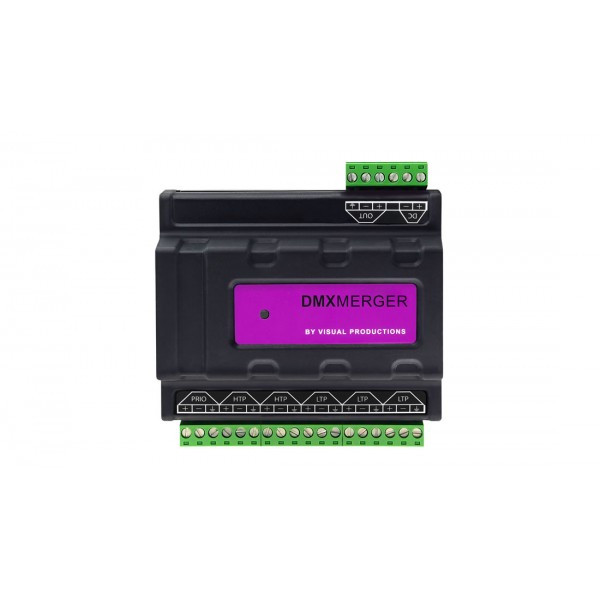

About: Visual Productions DMX Merger
The Visual Productions DMX Merger is a tool for combining signals from multiple lighting controllers into a single DMX network. Up to six different DMX signals can be merged together. How the DMX signals are merged together depends on the merging strategy. The Dmx-Merger offers three different strategies amongst its six inputs: LTP, HTP and Priority.The Latest Takes Precedence strategy selects one of the LTP inputs based on which port had the most recent change. This can be a change in channel levels or a DMX signal becoming active.
Features
6 DMX Inputs with individual Optical Isololation - Screw Terminals
Pre-Configured Priority / HTP Merge / LTP Merge
9-24VDC (PSU not Included)
Model: VPDMXMERGER
Visual Productions DMX Merger
- Brands Visual Productions
- Product Code:VPDMXMERGER
- Availability:In Stock
-
$495.00
