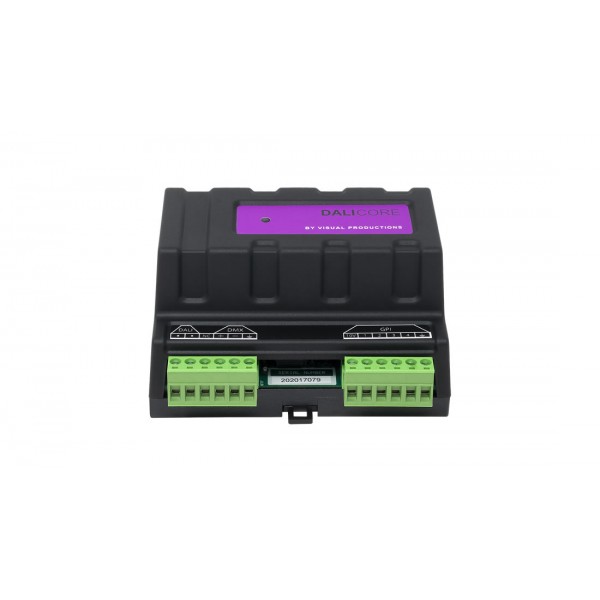

• Visual Productions DaliCore Lighting Converter VPDALICORE

About: Visual Productions DaliCore Lighting Converter VPDALICORE

An application lighting controller called Visual Productions DaliCore VPDALICORE Lighting Converter supports DALI and, subject to a software upgrade, also supports DALI-2 and DT-8. DaliCore takes care of the commissioning and daily control of the DALI fixtures, making it an ideal choice for a standalone DALI installation. The DaliCore eliminates the need for DMX to DALI converters in projects that combine DMX and DALI. The DaliCore can initiate the required DALI control message upon receiving any entertainment protocol, including DMX, Art-Net, or sACN. a method that, as opposed to converting real-time DMX values to DALI values, results in much smoother dimming curves.

Even though the DaliCore's DMX port can be used to convert, its purpose is actually to make hybrid DALI and DMX installations easier. You can select lighting scenes that use both DALI and DMX fixtures with the DaliCore, which uses RDM to find and set up the DMX lights.

Features

DIN Rail mounting
DALI
DMX512-A (ANSI E1.11)
RDM (ANSI E1.20)
Ethernet
sACN & Art-Net
4x GPI port (contact-closure or 0-10V)
Screw terminals
Power over Ethernet (class I)
9-24V DC 500mA (PSU optional)
Operating temperature -20 C to +50 C (-4 F to 122 F)

Model: VPDALICORE

Write a review

Note: HTML is not translated!
   Bad           Good

Visual Productions DaliCore Lighting Converter VPDALICORE

  • $915.00
