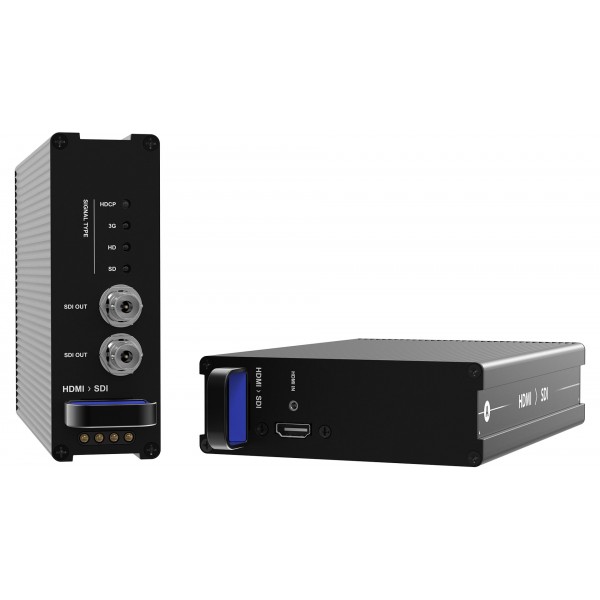

About: Theatrixx HDMI to 3G-SDI Reversible Module XVVRM-HDMI2SDI

The Theatrixx XVVRM-HDMI2SDI HDMI to 3G-SDI Reversible Module fits in the 8-Bay Reversible Rackmount Converter system. The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

Features

Video Input
1 x HDMI 1.2 type A with locking system
Video Output
2 x 3G/HD/SD SDI BNC
3G Format Support: 1080p50, 1080p59.94, 1080p60

Model: XVVRM-HDMI2SDI
