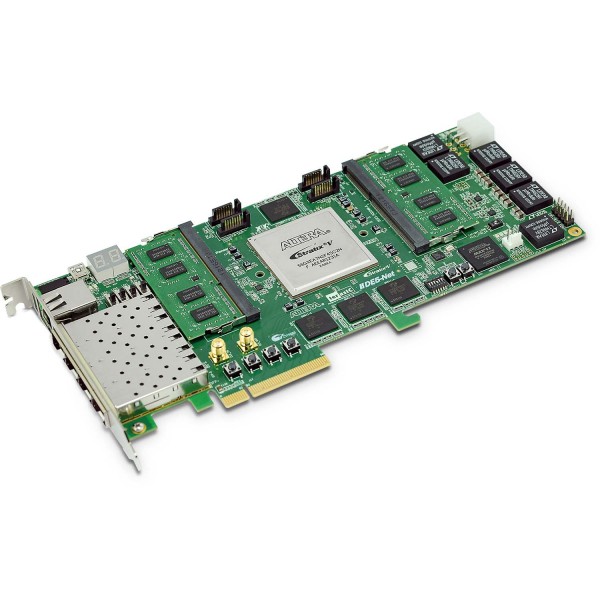

Terasic DE5-Net FPGA Development Kit P0205 offering ideal hardware solution for designs that demand high capacity and bandwidth memory interfacing, ultra-low latency communication, and power efficiency. With a full-height, 3/4-length form-factor package, the DE5-Net is designed for the most demanding high-end applications, empowered with the top-of-the-line Altera Stratix V GX, delivering the best system-level integration and flexibility in the industry.

The Stratix® V GX FPGA features integrated transceivers that transfer at a maximum of 12.5 Gbps, allowing the DE5-Net to be fully compliant with version 3.0 of the PCI Express standard, as well as allowing an ultra low-latency, straight connections to four external 10G SFP+ modules. Not relying on an external PHY will accelerate mainstream development of network applications enabling customers to deploy designs for a broad range of high-speed connectivity applications.

For designs that demand high capacity and high speed for memory and storage, the DE5-Net delivers with two independent banks of DDR3 SO-DIMM RAM, four independent banks of Cypress QDRII+ SRAM or functional compatible SRAMS provided by GSI and ISSI, high-speed parallel flash memory, and four SATA ports. The feature-set of the DE5-Net fully supports all high-intensity applications such as low-latency trading, cloud computing, high-performance computing, data acquisition, network processing, and signal processing.

FPGA

Altera Stratix® V GX FPGA (5SGXEA7N2F45C2)

FPGA Configuration

On-Board USB Blaster II or JTAG header for FPGA programming Fast passive parallel (FPPx32)
configuration via MAX II CPLD and flash memory

Memory

Two Independent DDR3 SODIMM Socket, Up to 8GB 800 MHz or 4GB 933 MHz for each socket
FPGA Configuration
Four Independent 550MHz SRAM, 18-bits data bus and 72Mbit for each
256MB FLASH

Communication Ports

Four SFP+ connectors
PCI Express (PCIe) x8 edge connector (includes Windows PCIe drivers)
One RS422 expansion header
