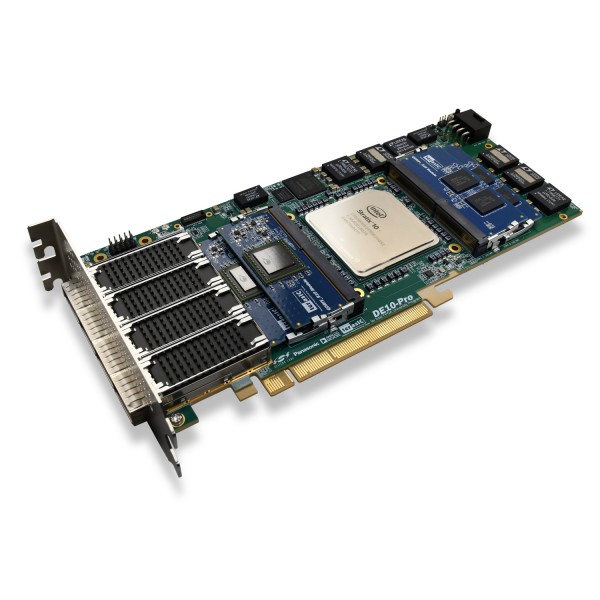

About: Terasic DE10-Pro-32G Development Kit

Terasic DE10-Pro-32G Development Kit P0647 is purpose-built for acceleration and high-speed connectivity applications to address the demands of the next-generation high-performance systems. The board itself takes advantage of the latest Intel® Stratix® 10 to obtain speed and power breakthrough (with up to 70% lower power). Also, armed with 32GB DDR4 memory module running at over 150 Gbps, up to 15.754 GB/s data transfer via PCIe Gen 3 x16 edge between FPGA and host PC, and 4 on-board QSFP28 (100GbE) connectors, the board delivers more than 2X the performance of previous generation acceleration cards.

The DE10-PRO fully supports Intel OpenCL™ BSP to unlock higher programmability, adaptability and enable efficient heterogeneous computing applications. Our clients' systems can achieve highest computing performance and lowest cost for their AI applications by leveraging the Stratix® 10 FPGA on DE10-PRO.

FPGA:

Intel Stratix 10 GX/SX FPGA

FPGA Configuration:

On-Board USB Blaster II or JTAG header for FPGA programming
Avalon-ST (AVST x8) configuration via MAX V CPLD and CFI flash memory
ASx4 Configuration

Memory:

128MB FLASH
Up to 8 GB DDR4 2666/2400(FPGA Core Speed 1/2 FPGA) for each socket

Communication and Expansion:

Four QSFP28 connectors for 100/40/25/10 GbE network interface
PCI Express Gen3 x16 edge connector (includes PCIe drivers)
2x5 Timing expansion header
