About: SEADA SW2036 32 HD Inputs 36 HD Outputs Video Wall Solution

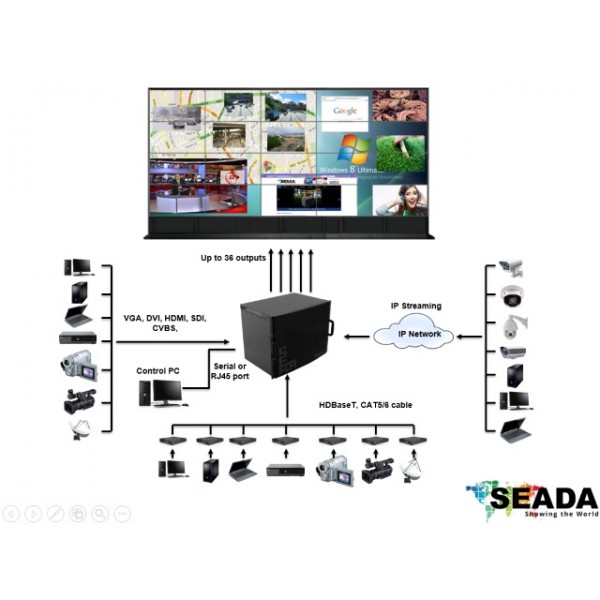

SEADA SW2036 able to capture 32 HD video inputs or 128 composite video inputs, SW2036 is also able to capture up to 16 channels of 4K content through DL-DVI capture cards. Moreover it also supports to decode and capture IP streaming signals in the very same controller. HDCP compliance allows SW2036 to capture and display content-protected HD signals.

SW2036 is flexible in output and input configuration. It can be customised for the uses and also easy to be upgraded simply by changing the input/output cards in the chassis.

Chassis 8U
HDCP support Yes
Power Supply RPSU
MAX HD Inputs 32
MAX SD Inputs 128
MAX Outputs 36

Model: SW2036
