About: SEADA SW2008 8 HD Inputs 8 HD Outputs Video Wall Solution

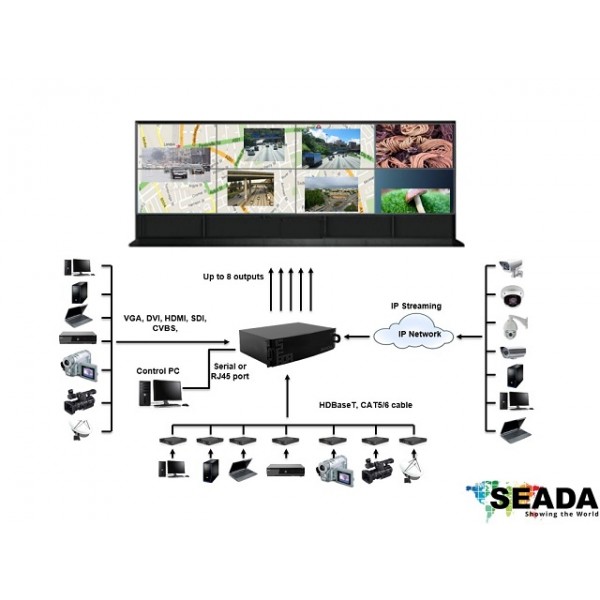

SEADA SW2008 is designed to meet the need for small size of video wall displays in a 24/7 operational environment. It is widely used in digital signage, command & control rooms and others where no more than 8 displays are needed. Underneath its 2U chassis, SW2008 is able to capture all sorts of digital and analog signals: DVI, HDMI, 3G/HD-SDI, Component and CVBS signals. Besides its ability of capturing 4K content, it also supports to decode and capture IP streaming signals in the very same controller. HDCP compliance allows SW2008 to capture and display content-protected HD signals.

Like other SolarWall controllers, SW2008 is flexible in output and input configuration. It can be customised for the customers and also easy to be upgraded simply by changing the input/output cards in the chassis.

Controller Chassis 2U 19” ANST/EIA RS-310C STANDARD INDUSTRIAL CHASSIS
Dimensions 482*380*88
Max Input Channel 8 HD capture channels or 4 channels of 4K caputure or 32 CVBS capture
Input Format DVI/HDMI/VGA, SDI, VCBS, DL_DVI, HDbaseT, Fiber Optical, IP streaming
Max Output Channel 8 dispay channels
Output Format DVI/HDMI/VGA, SDI, HDbaseT, Fiber Optical
HDCP support Yes
Chassis 2U
MAX HD Inputs 8
MAX SD Inputs 32
MAX Outputs 8

Model: SW2008
