• SEADA SW-MV-0501P with HDBaseT RX 4K 5x1 Multi-Viewer Kit

About: SEADA SW-MV-0501P with HDBaseT RX 4K 5x1 Multi-Viewer Kit

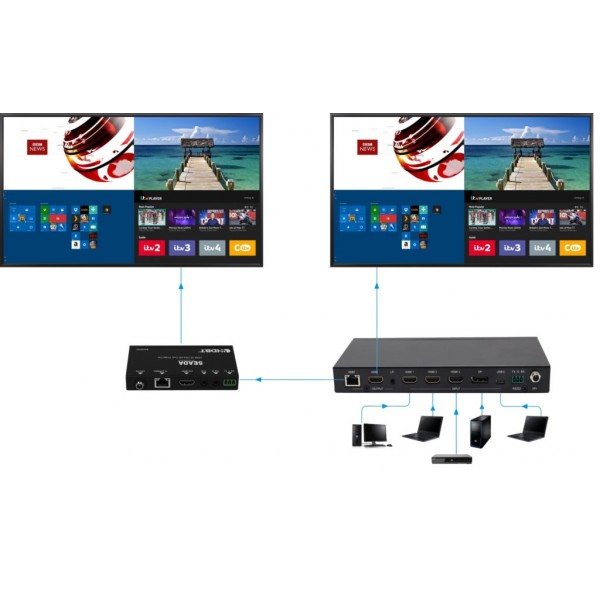

SEADA SW-MV-0501P with HDBaseT RX 4K 5x1 Multi-Viewer Kit offering HDMI 2.0, DP 1.2 and USB C Seamless Video Switcher with Multiview function. It supports 3x HDMI, 1x DP and 1x USB C (video only) inputs, one HDMI and one HDBaseT video mirror output which can send audio & video source onto a CAT cable up to 70 meters.

SD-MV-0501P Features:

Supports 5 Multiview display modes
Seamless switching on single display window mode
Supports up to 20 preset layouts
Supports customized layouts
Supports both HDMI and HDBaseT outputs
Supports HDMI 2.0, DP 1.2 & USB C inputs
Supports customised resolution at both input and outputs ports.
Supports input and output resolution up to 4096x2160P@60Hz
Extensive EDID and HDCP control

HDBaseT RX Features:

HDBaseT transmission length up to 70m @1080p, or 40m @4K
Supports LPCM, AC3, DD+, DTS, DTS-HD format up to 7.1 channel
Supports independent audio matrix and volume control
Audio extraction, 3.5mm L/R output
Provide 24V/10watt PoC for HDBaseT receiver
Auto-switching at single window mode
Control via PC software, IR control, Front panel buttons
Support 3rd party control via RS232

Model: SD-MV-0501P-KIT

Write a review

Note: HTML is not translated!
   Bad           Good

SEADA SW-MV-0501P with HDBaseT RX 4K 5x1 Multi-Viewer Kit

  • $1,195.00
