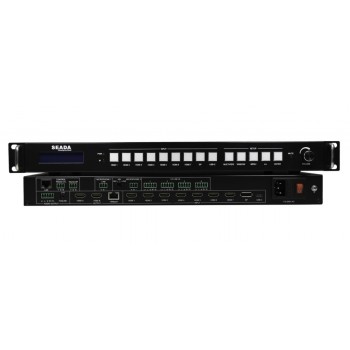

About: SEADA SD-PS-M943 4K Presentation Switcher with Multiview

SEADA SD-PS-M943 offering a powerful seamless 4K presentation switcher with multiview function. It can take up to 9 video inputs with up to 4K resolution at different formats (HDMI, DP, USB-C) and then display it onto a display with resolution up to 4K. The SD-PS-M943 presentation switcher can be easily controlled via web GUI, front panel buttons, RS232, IR or an 3rd party controller which offers the greatly controlling flexibility. The unit can run standalone once configured.

Features:

4K 9×1 presentation switcher with multiview ability
1 x HDBaseT and 2 mirrored HDMI outputs
Supports seamless switching
Supports video source auto or manual switching
7 x HDMI, 1 x DP, 1 x USB-C
Supports scaling on outputs
Supports up to 4K and HDCP 2.2 compliant.
Supports up to 70m and 100m transmission distance on 4K and HD signal respectively over HDBaseT output
HDBaseT output supports 24V PoC
Supports audio embedded and de-embedded and audio mixing
Supports independently audio selection
Supports 2 microphone inputs, both can be mixed with main audio
Independently microphones volume control and overall volume control
Supports balanced LR audio output and Toslink digital audio output
Supports 4 external LR inputs
Supports Mic input with Phantom Power
Supports controllable via network, RS232, remote control, and front on panel buttons
Supports up to 20 custom layouts

Model: SD-PS-M943
