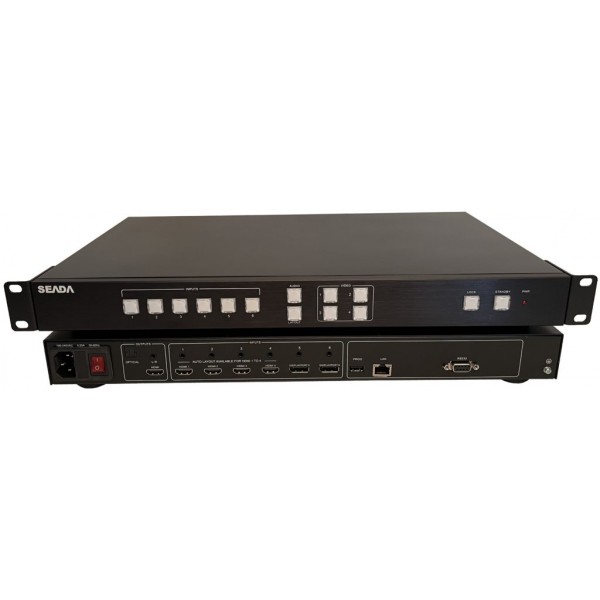

About: SEADA SD-MV-CM61 6X1 Multiviewer

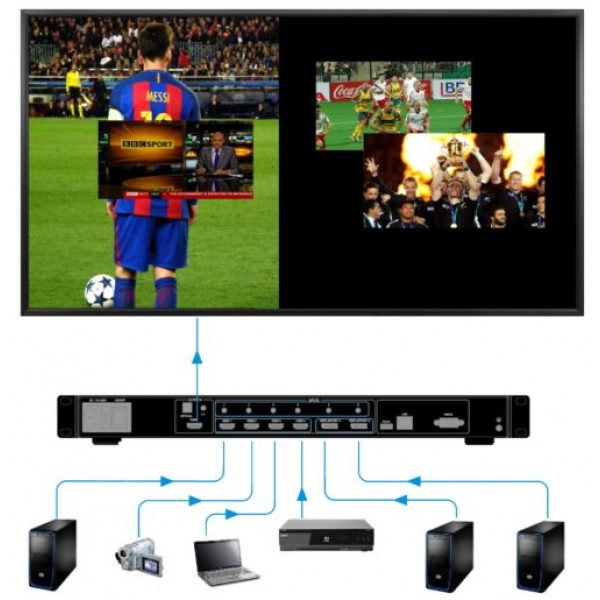

SEADA SD-MV-CM61 6X1 Multiviewer supports auto scaling to enable images to be sized and positioned anywhere on screen. They support a wide range of creative layouts, including split, side[1]by-side, picture-in-picture, overlapping windows and even in a solo view for full screen viewing of any single source. It supports up to 16 pre-defined layouts and up to 16 pre-set customized layouts making the system management extremely easy.

Control is quick and comprehensive on SD-MV-CM61, it can be controlled using buttons at the front panel, RS232 commands, or the fully featured intuitive web GUI via RJ45.

Features

4 HDMI2.0 inputs, 2 DP 1.2 inputs
1 HDMI2.0 output
Supports 4K@60Hz 4:4:4
Supports HDCP 2.2
Supports quad view
Support up/down scaling
Support video cropping
Supports 6 embedded audio inputs
Supports 6 analog audio inputs
Supports audio embedding
Supports audio de-embedding
Supports Auto-switching
Supports up to 16 pre-defined layouts
Supports up to 16 custom layouts
Multiple control methods, including front panel, web GUI and RS232 port
