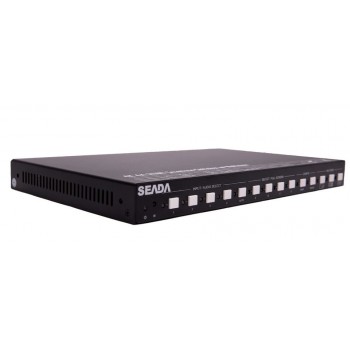

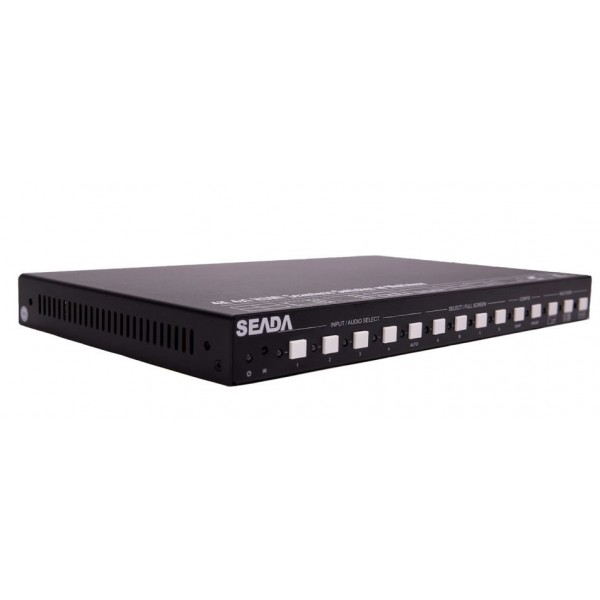

About: SEADA SD-MV-CM41 Multiviewer

SEADA SD-MV-CM41 Multiviewer is designed to display multi video inputs onto one display & features four HDMI inputs supporting up to 4K and one HDMI output with resolution up to 4K as well. It also provides a line input, 1 mix input, 1 SPDIF output and 1 analog output for audio processing. It is extremely flexible and seamless switching capable multiviewer making it perfect for applications such as broadcasting, security, boardroom, TV studio and so on.

SD-MV-CM41 multiviewer supports auto scaling to enable images to be sized and positioned anywhere on screen. They support a wide range of creative layouts, including split, side-by-side, picture-in-picture, overlapping windows and even in a solo view for full screen viewing of any single source. It supports up to 16 pre-defined layouts and up to 4 pre-set customized layouts making the system management extremely easy.

Control is quick and comprehensive on SD-MV-CM41, it can be controlled using buttons at the front panel, the remote control, RS232 commands, or the fully featured intuitive web GUI.

Features

4 HDMI inputs, 1 HDMI output
Supports 4K@30Hz 4:4:4
Supports HDCP 2.2
Seamless switch between 4 input ports
Auto Scaler in each source input
Supports audio embedding and mixing
Supports audio de-embedding
Auto-switching at single window
Cycles through the windows from A to D by swap buttons
Resizes the windows in 3 different sizes
16 pre-defined layouts for multi-view
Supports up to 4 customised preset layouts
Multiple control methods, including an assignable front panel, IR remote, web GUI and RS232 port
