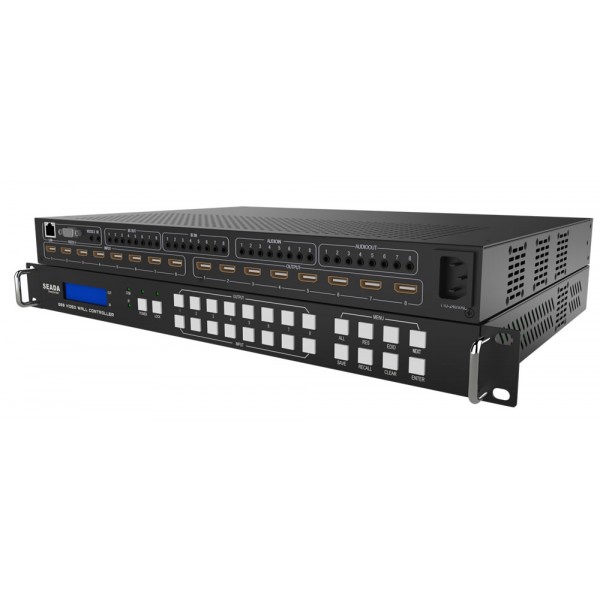

About: SEADA G88-HDMI Video Wall Controller

SEADA G88-HDMI Video Wall Controller accepts up to 8 HDMI inputs and displays them on 8 different displays, each with a resolution up to 4K@60fps. G88 not only allows the user to display a single input across all eight screens, but also to display different input videos onto different screens working like a matrix switcher.

The G88 Controller can be easily configured via IP/serial port connection to a Windows based PC, running the management software, from the front panel of the unit, or through 3rd party controllers. The Windows based software provides a user-friendly GUI, greatly simplifying the system configuration. G88 controllers can run standalone without the connection to the control PC, once configured.

Features

8 HDMI 2.0 inputs with embedded audio
8 HDMI 2.0 outputs with embedded audio
Supports up to 4K60 4:4:4 inputs
Supports up to 4K60 4:4:4 outputs
8 analog audio inputs and outputs
Supports audio embedding for outputs
Supports audio de-embedding for inputs
Independent 8×8 IR Matrix
Supports video wall capabilities
Supports picture in picture effect on video wall
Supports scaling on outputs
Supports presentation switching capabilities
Custom pre-set layouts for both matrix and video wall modes
Supports seamless switching HDCP compliant
EDID management on each input/output
Customizable OSD
Adjust Display settings such as Contrast and Saturation remotely
Controllable via IP/serial port
Controllable via front panel buttons
Adjust the position of the screen remotely
