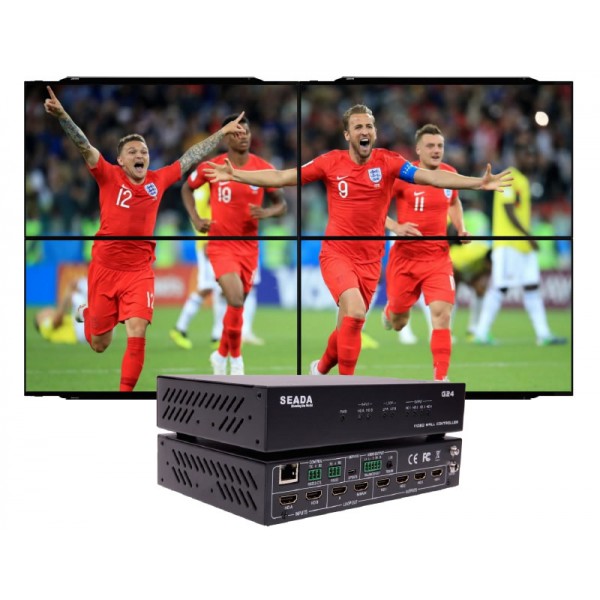

About: SEADA G24-HDMI Standalone Video Wall Controller

SEADA G24-HDMI Standalone Video Wall Controller can be easily configured via IP/serial port connection to a Windows based PC, running the management software, or through 3rd party controllers. The Windows based software provides a user-friendly GUI, greatly simplifying the system configuration. G24 controllers can run standalone without the connection to the control PC, once configured. SEADA G24 supports up to 2 inputs and 4 outputs with build-in up & down scaling to deliver up to 4K@60 4:4:4 resolution on both inputs and outputs. Moreover, G24 supports daisy chain to form up to 16x16 video wall. G24 is able to rotate the output 180 degree which enables users to form a narrow bezel video wall with low-cost stand TVs.

G24-HDMI Features

Support up and down scaling on each output
Support 180º rotation
Support PIP on video wall
Support 2 channels HDMI loop out
Two HDMI 2.0 inputs with embedded audio
Four HDMI 2.0 outputs with embedded audio
Each input and output support resolutions up to 4K@60Hz 4:4:4
Support daisy chain up to 16 x 16 video wall
Support analog audio output
Toslink digital audio outputs
Support bezel compensation
Support EDID management
Custom pre-set layouts
Controllable via IP/serial port
HDCP compliant
Support adjusting display settings such as contrast and saturation remotely
