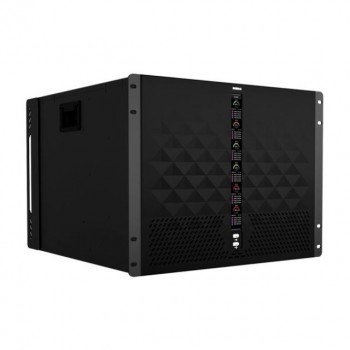

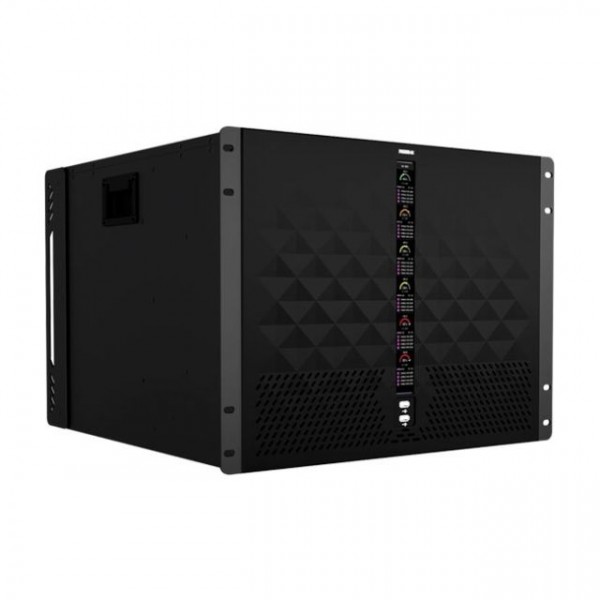

About: RGBlink X8 HDCP Scalable Video Wall Processor

The RGBlink X8 310-0008-01-0 is a routing and video wall processor that is HDCP-compliant, scalable, and extensible. It can be set up to support a variety of inputs and outputs. For excellent image reproduction, it incorporates RGBlink's third-generation high performance video scaling technology. The SmartSlot system, which enables the installation of up to 24 inputs and 12 outputs, and its completely modular design in the card frame style are its most outstanding features. Any input can be assembled as layers across outputs or scaled, positioned, routed, transcoded, or both. The X8's modular design is built for heavy switching and routing, and it extends to all parts for long-lasting service.

Features

8K ready with quad link HDMI 2.0 input
8K single link with HDMI 2.1 and DP 1.4 input HDR 10 & HLG compliant
6+2: up to 6*4K layers on any output port, with 2 additional layers can be added (select 2*4K2K signal sources from the existing 6 signal sources)
Fully customizable in/out resolutions & EDID Management
OSD overlay features
XPOSE 2.0 control
GENLOCK/SYNC
I/O Module Based Design and hot swap capacity
Each input module support up to 4*4K2K@60
HDMI 2.0 output module support up to 2*4K2K@60
