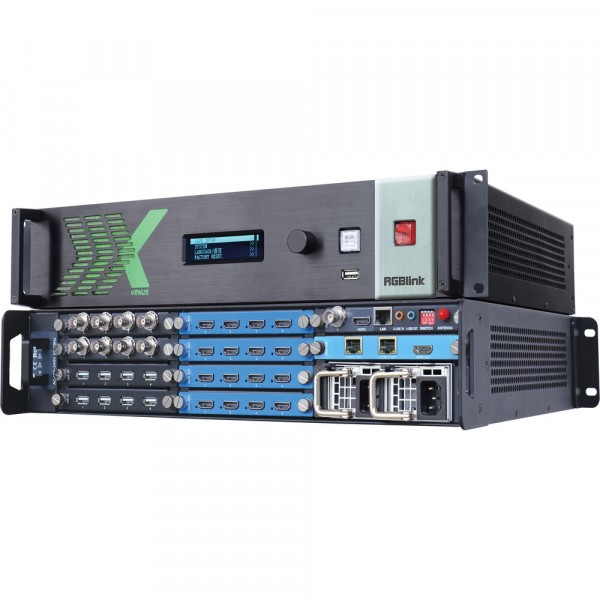

About: RGBlink X2 16x16 Universal Processor

RGBlink X2 16x16 Universal Processor offering up to 16 outputs via four card-frame style slots, output signal choices include HDMI, 3G-SDI, HDBaseT and H.264. On the input side there are similarly four slots, supporting up to a total of 16 video inputs. Options for input include VGA, CVBS, USB Media, 3G-SDI, HDBaseT as well as a multi-signal 4K in option.

X2 combines truly seamless, fade in fade out, glitch-free switching with advanced scaling technologies to meet the requirements of high quality, high resolution video applications, and with multi-mode operations built right in, X2 can equally be used as a video wall processor, a presentation processor or a dynamic router.

EDID management is built in enabling wide signal support, and faciliting any-signal cross-conversion for output. Real-time resolution adaptation, color uniformity compensation technology are also on board.

X2 is a powerful yet economical solution, ideal for video wall applications, supporting multi-window, multi-layer video configurations across the output pixel space.

Up to 16 (2K) x 16 (2K) inputs/ouputs or 4 (4K) x 16 (2K) (4x4 slots)

Features

Wide range of user fit smart detect signal choices for input and output
Auto input format detect and conversion
EDID Management on board
Genlock Y and Digital Reference built in
Real-time resolution adaptation
Isolated storage and frame rate conversion
Rotation in 90°increments
Color uniformity compensation technology
DSK and Chroma Key features
Dedicated source preview module (standard with HDMI and H.264)
Option for redundant hot-swap power supply
Hot backup and auto-fail over functionality
User-defined resolution adjustments
Multi-layer / Multi-window
Multi-mode - choose from video wall, presentation or dynamic routing
XPOSE desktop and mobile compatible
