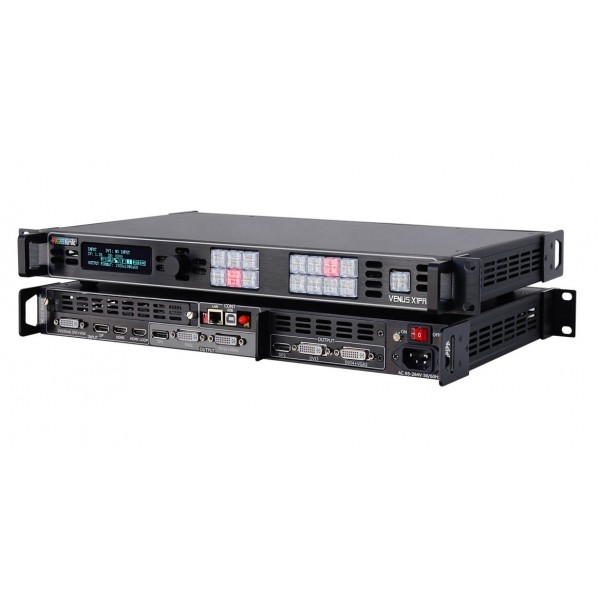

About: RGBlink X1Pro EXT Scaler Switcher

RGBlink X1Pro EXT Scaler Switcher is suitable for a wide range of applications that require seamless switching and scaling. X1pro is standard with two DVI ouputs for 4Kx1K seamless splicing and scaling from multiple input sources. There are muplie operation modes to provide for flexible operations, inlcuding 2K Presentation mode with DVI outputs as PVW and PGM, as well as 2K standard mode which duplicates the output display while adding PIP support.

Add the output expansion to make use of a full 4K split, 8Kx1K splicing and Dual2K previews.

Standard inputs include DVI, DisplayPort and HDMI. Additional inputs are available with three user it 2K inputs slots available - options include 3G-SDI, USB2.0 media, Composite and VGA, along with DVI and HDMI.

EDID management is available on board as are image quality settings.

Features

4K input support
Input standard 2K formats
Scale and switch seamlesslybetween inputs
Output to Dual 2K or expand to 4K split ouput
EDID management on board
HDCP 2.0 compliant
Set custom output resolution
Control and configure from XPOSE
