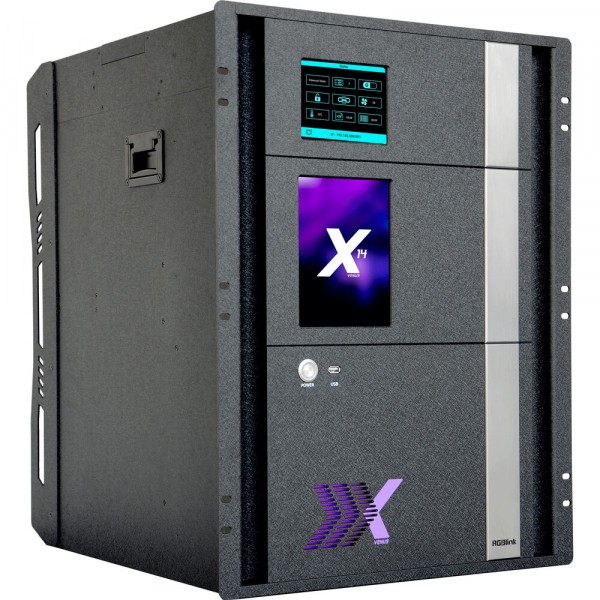

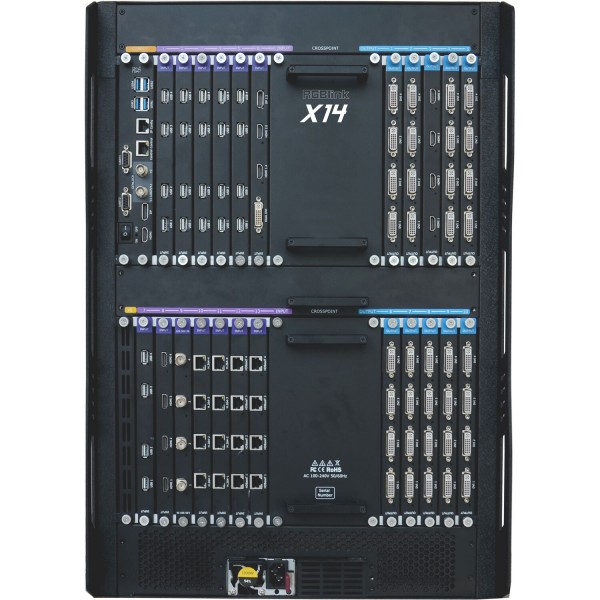

About: RGBlink X14 56x40 Universal Processor 310-0014-01-0

RGBlink X14 56x40 Universal Processor brings a new level of efficiency capability and control supporting to massive 52 inputs and up to 40 outputs. X14 310-0014-01-0 truly brings together large videos systems for system-in-box approaches to video presentation and integration. Modular throughout RGBlink technologies support user fit input and output signals with each slot configurable up to 4K/UHD resolutions at full frame rates.

Built-in ethernet ports of H.264 streaming on communication board enhance it’s capacity of output.Together with XPOSE, it brings a more convenient applications to ensure safety display for projects; Meanwhile, H.264 streaming function on communication board is widely applied during live streaming show via common live steaming website.

Unique encoding technology between 2SI and SQD are switchable via RGBlink 12GSDI input module to ensure a safety application during 4K signal process, transmission.

Features

Up to 52 2K inputs / 14 4K inputs (or combination of)
Up to 40 outputs / 20 4K outputs (or combination of)
Seamless switching 54x40
165 mega pixlel output capactiy
Display up to 160 layers, 4 layers each output
Multi-display system integrated management
Simultaneous & multiple opteration modes
Redundant hot swap power supply option and auto temperature control
EDID management
Streaming source preview to XPOSE or 3rd party via H.264
Genlock Y In / Loop
Powerful format conversion among H.264, HDBaseT, SDI(SD-12G), VGA, CVBS, USB, HDMI(1.3, 1.4, 2.0), DVI, DP(1.1, 1.1a, 1.2)
2SI and SQD switchable in 4K application

Model: 310-0014-01-0
