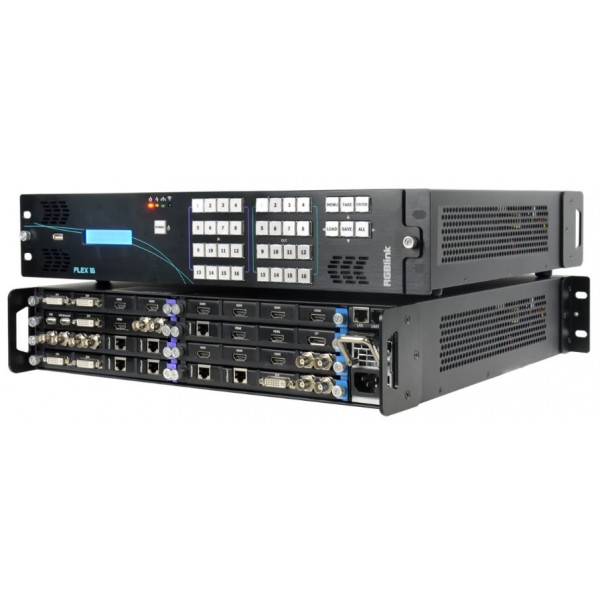

About: RGBlink Flex 16S Mixed Signal Splicing Processor

RGBlink Flex 16S Mixed Signal Splicing Processor is an innovative modular processing system for mixed signal matrix applications. Flex 16S features support for up to 16 input signals and 16 output signals all of which are modular. With a wide range of signal options available, FLEX 16 is an ideal solution for modern environment where a range video devices and signals are employed.

With on board preset storage and easy access from the front panel, via RGBlink XPOSE, or via RGBlink OpenAPI, FLEX 16 offers flexible video control for pro AV environments.

FLEX 16M mixed-signal support allows cross conversion between any input to any output making the solution perfect matrix and routing solutions. FLEX 16S transforms FLEX 16 in to splicing a videowall controller up to 32 mega pixels.

Features

16x16 fully modular input and outputs
Mixed format input and output matrix
36 mega pixel capacity
Automatic signal switching
Save & Recall up to 256 Presets
Set output up to resolutions 2.4 mega pixels including 1080p@60Hz / 2048x1152@60Hz / 2560x816@60Hz
EDID Management on board
Matrix Control via front panel
Control remotely via RGBlink OpenAPI
Configuration & control with RGBlink XPOSE
Powerful format convertor for HDMI, DVI, DP, USB media, HDBaseT, SDI and more
Up to 16 layers display in Splicing mode
