About: Pleora Technologies iPORT CL-U3B-IND Base Mode Development Kit

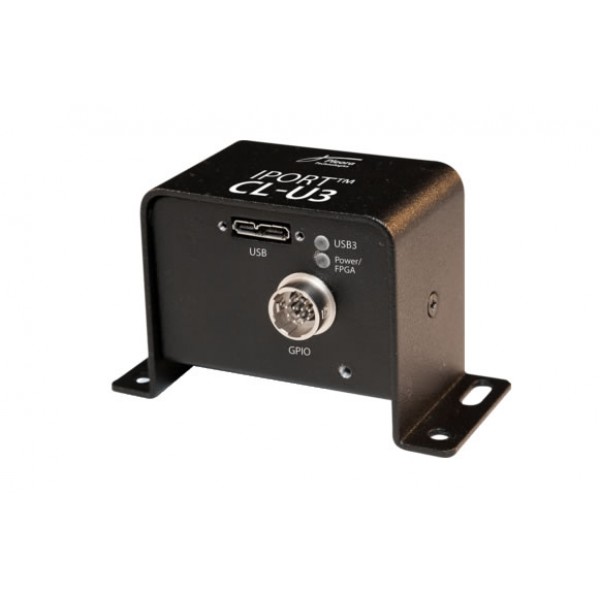

Pleora Technologies iPORT CL-U3B-IND Base Mode Development Kit 903-0013 offers Industrial-use External Frame Grabber in mountable enclosure for Camera Link Base mode, power supply, USB 3.0 cable, and eBUS SDK USB stick.

iPORT CL-U3B-IND Base Mode transmits video from Base mode Camera Link cameras with low, predictable latency over a USB 3.0 link. The connection at the workstation is a standard USB 3.0 port, eliminating the need for a desktop computer with an available peripheral card slot for a traditional frame grabber. Integrated PLC and GPIO capabilities allow end-users to control, trigger and synchronize cameras and other vision system elements.

The cameras can also be used with a broader selection of smaller form factor, low-power computing platforms to help reduce system costs.

Features:

Plugs into a wide range of computing platforms without needing a PCI/PCIe frame grabber
Compact and low power and Mountable enclosure
Line scan and area scan modes
120 MB frame buffer to accommodate multi-mega pixel sensor sizes
Throughput approaching 3 Gb/s
Record and playback functionality
USB3 Vision and GenICam compatible
Power, control, and video over the same USB 3.0 cable
Power over Camera Link with models CL-U3B-IND and CL-U3M-IND (require an external power supply)

Model: 903-0013
