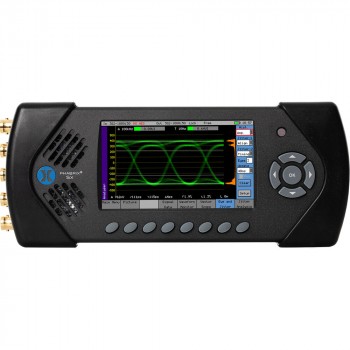

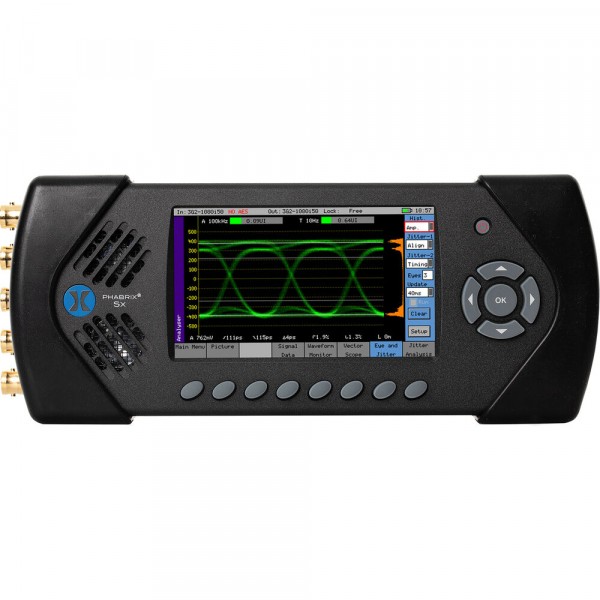

About: PHABRIX SxE Generator Analyzer/Monitor with Eye Jitter

PHABRIX SxE Generator/Analyzer/Monitor with Eye and Jitter offers eye patterns from a 3G signal, which is particularly significant for those users requiring a solution for testing high-end products in the 3G arena. Its 3G-SDI, HD-SDI, and SD-SDI eye display allow for highly detailed measurements. Jitter measurements are among the more important requirements in the design and operation of high-speed serial links and these can be obtained using the unit's thermometer display for go/no- go SMPTE compliance testing.

Features:

Three in one generator, analyzer, and monitor
Eye and jitter measurements
3G-SDI, HD-SDI,SD-SDI, and AES
High quality 16:9 picture monitor
32 + video test signals
Moving zone plate
Text and logo identification
16 channel embedded audio
Auto genlock BI/TRI/SDI cross lock
16 channel audio metering
Waveform monitor
Vectorscope
Ethernet-based remote operation
Battery plus mains power

Model: PHSXE

PHABRIX SxE Generator Analyzer/Monitor with Eye Jitter

Brands PHABRIX
Product Code:PHSXE
Availability:In Stock

$7,950.00

Available Options

Sx Options

AV Delay Signal Generator + Analyser (+$815.00)

Command Test Scripts + HTML Reports (+$410.00)

SDI Data Display + ANC Inspector (+$1,230.00)

TCP/IP Sockets Based Remote Control (+$410.00)

Programmable Zone Plate Generator (+$410.00)

Extra formats: 2K, 444, RGB, 12bit (+$410.00)

Dolby E/D/D+ Bitstream Generator + Analyser (+$1,450.00)

PHSXO-ENG Bundle (+$2,450.00)
