• Osprey Raptor 1245 4 SDI I/O Channels

About: Osprey Raptor 1245 4 SDI I/O Channels

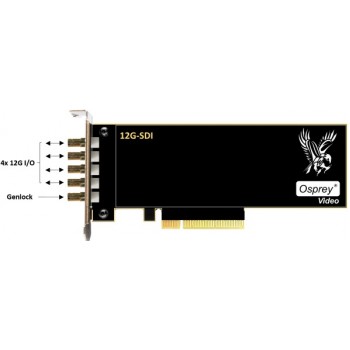

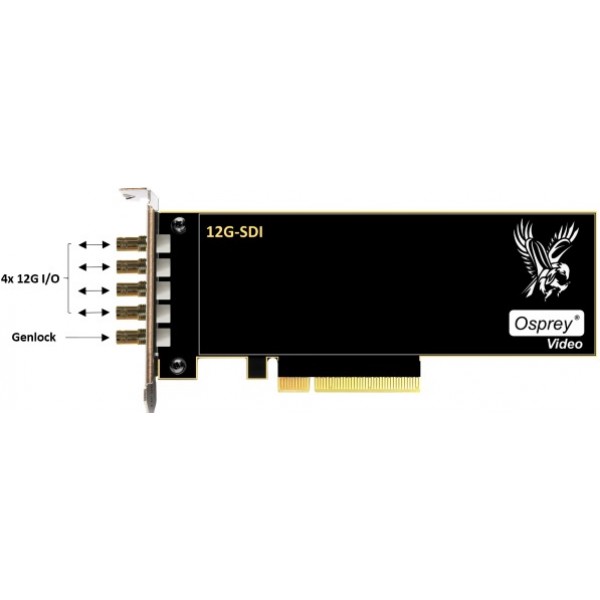

Four 12G-SDI connections are available on the Osprey Raptor 1245. Bidirectional ports support SD, HD, Ultra HD, and 4K DCI frame sizes. All Osprey 95-00515 can capture and playback video at 60 frames per second. Each SDI Input supports 16 Audio Channels (8 Stereo Channels), for a total of 128 Audio Channels when all inputs are used. If the card is used in Output Mode, a Genlock Input allows for frame synchronisation.

Connections
4 x bi-directional 12Gb/s SD/HD/3G-A/2K/4K (Micro HD BNC)
Limited to 32G total Input bandwidth

SDI Audio Inputs and Outputs
Embedded 16 Channels (8 Stereo) per connection

Sync Input
Tri-Sync or Black Burst (Micro HD BNC)

Inputs Only Release Q3 2018 - Output feature available Q4 2018 as free field upgrade



Model: 95-00515

Write a review

Note: HTML is not translated!
   Bad           Good

Osprey Raptor 1245 4 SDI I/O Channels

  • Brands Osprey Video
  • Product Code:95-00515
  • Availability:In Stock
  • $1,990.00
