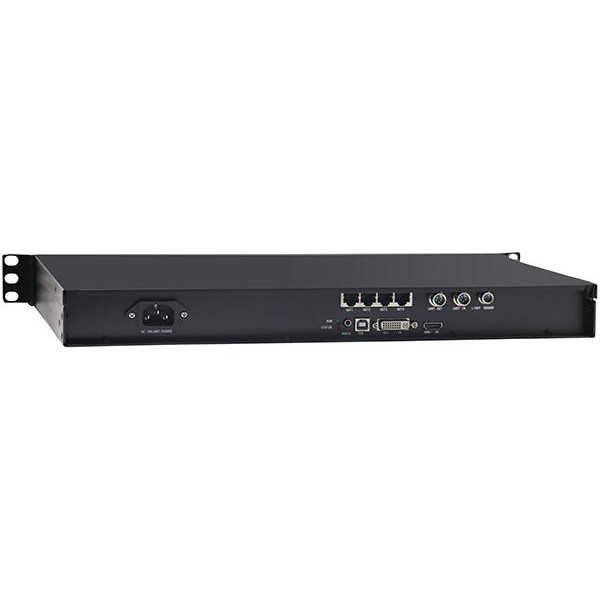

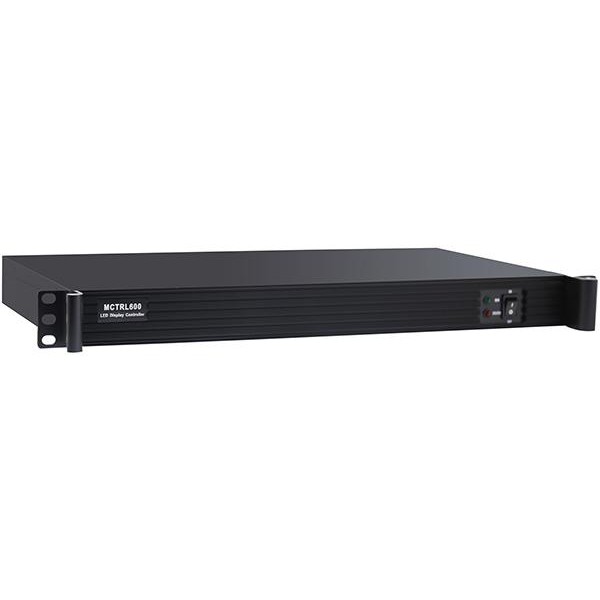

About: NovaStar MCTRL600 LED Display Controller

NovaStar MCTRL600 LED Display Controller which supports extra-large resolution with HDMI/DVI video input and four Ethernet port outputs, a single unit is able to load 2560 x 960. Multiple units can be cascaded for uniform control.

Features


HDMI/DVI input
HDMI/external audio input
12bit/10bit/8bit HD video source
Resolution supported: 2048×1152, 1920×1200, 2560×960
Resolution supported: 1440×900 (12bit/10bit)
1 light sensor interface
Cascading supported
18bit gray scale processing and presentation
Video format: RGB, YCrCb4:2:2, YCrCb4:4:4
Standard 1U housing and independent power supply

Model: NovaStar-MCTRL600

Write a review

Note: HTML is not translated!
   Bad           Good

NovaStar MCTRL600 LED Display Controller

  • Brands NovaStar
  • Product Code:NovaStar-MCTRL600
  • Availability:In Stock
  • $599.00
