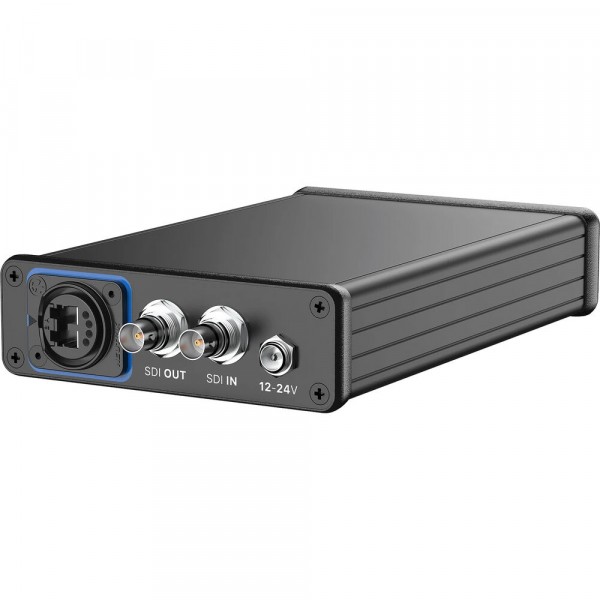

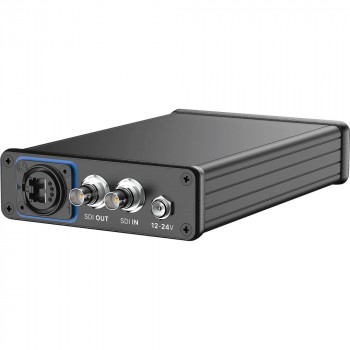

• Middle Things Fiber Camera Box 12G PTZ Slave

About: Middle Things Fiber Camera Box 12G PTZ Slave

Middle Things Fiber Camera Box 12G PTZ Slave MT-FIBCAMBOXPTZ12GS Ever felt the time-consuming task of pulling three different SDI cables to a single camera, one for the input, one for the return feed and one for LAN control ? The Fiber Camera Box 12G merges these three cables into one single Optical fiber cable, which is more lightweight and much more reliable than traditional copper BNC cables since it is insensitive to all electromagnetic interferences. You can run your fiber cable over thousands of miles with zero dropouts in 4K.

The Fiber Camera Box PTZ 12G (Slave) can be used with the Middle Things Dispatch 4 PTZ 12G or the Fiber Camera Box SDI 12G (Master). The Fiber Dispatch 4 is not required. Two Fiber Camera Box PTZ can be connected together, but please note that a Slave unit has to be used with a Master and vice versa. You cannot connect a Slave to a Slave or a Master to a Master.

The Neutrik Optical ConDuo connector makes this converter compatible both with widespread LC / LC fiber cables, as well as the rugged Optical Con Advanced Duo & Duo Lite cables by Neutrik, designed for field use and tough handling. The connector has a built-in automatic shutter that protects the fiber cores as soon as the cable is disconnected.

Features:

I/O connections: 12-24V DC IN , SDI IN , SDI OUT (up to 6G) , Neutrik OpticalCon Duo LC
Input Voltage : 12-24V DC
Power Consumption :
Fiber type : Single Mode
Length :18cm / 7.1 inch
Width : 10.5cm / 3.95 inch
Depth : 3.5cm / 1.2 inch
Weight : 360g / 0.79 lbs
Storage Temperature : 14 to 140°F / -10 to 60°C
Package Weight : 5kg  / 1.1  lb

Model: MT-FIBCAMBOXPTZ12GS

Write a review

Note: HTML is not translated!
   Bad           Good

Middle Things Fiber Camera Box 12G PTZ Slave

  • Brands Middle Things
  • Product Code:MT-FIBCAMBOXPTZ12GS
  • Availability:In Stock
  • $990.00
