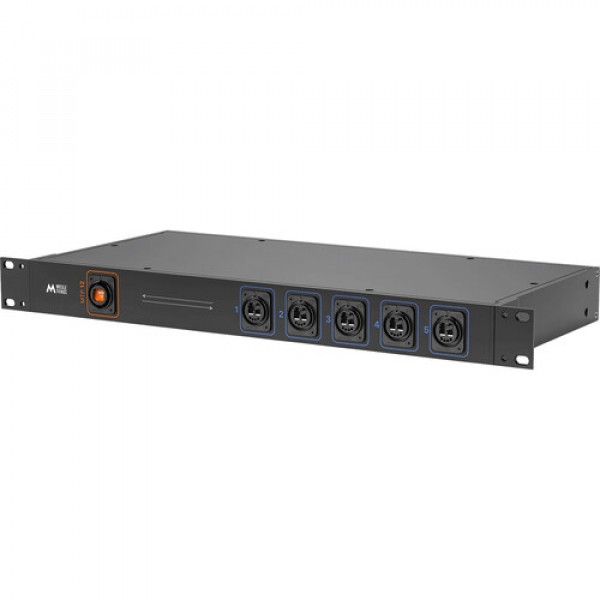

About: Middle Things Fiber Bridge 5 12G

Middle Things Fiber Bridge 5 12G MT-FIB5XBRIDGE allows you to have only one cable running from the control room to the stage. On the stage, the Fiber Bridge 5 acts as a stage box that splits the Neutrik opticalCON MTP® 12 fiber cable into 5 different OpticalCON Duo pairs + LAN, and vice versa. You can also use it in reverse and merge 5 OpticalCON Duo pairs + LAN into one single opticalCON MTP® 12 fiber cable. It supports 3G / 6G / 12G signals.

Features:

I/O connections: 5x Neutrik OpticalCON Duo, 1x Neutrik opticalCON MTP® 12, 1x LAN ,+12V DC power.
Input Voltage : 12V DC
Power Consumption :
Fiber type : Single Mode
LAN support : 10/100/1000Mbps Full/Half Duplex
Power Consumption :
Height : 4.5cm / 1.8 inch
Width : 48cm /18.9 inch
Depth : 22.5cm / 8.9 inch
Weight : 2.5kg / 5.5 lbs
