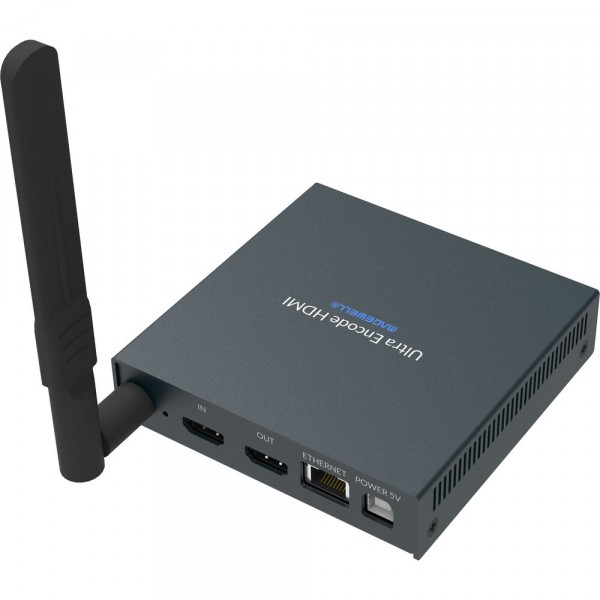

About: Magewell Ultra Encode HDMI 53040
Magewell Ultra Encode HDMI 53040 offering dual stream encoding profiles main stream (Max bitrate: 16Mbps) and sub stream (Max bitrate: 2Mbps)
Encoding Features
Support for H.264/HEVC video encoding
Encoding 2-channel AAC at 48kHz, 16-bit
Streaming Features
Natively support streaming to Facebook, Twitch and YouTube
Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS/TS over UDP/TS over RTP
Allow streaming to multiple destinations simultaneously (select protocols)
Input Features
Support for up to 4096x2160 4:4:4/4:2:2 30fps or 4096x2160 4:2:0 60fps input and loop through signals
Support for 48KHz, 16-bit 8-channel audio streams
Input audio from 3.5 mm LINE IN
Model: 53040
