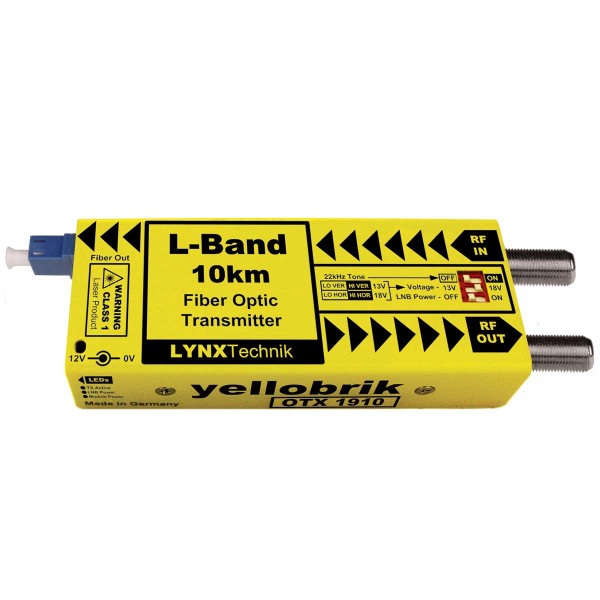

• LYNX Technik OTX 1910 L-Band Fiber Transmitter LC connectors

About: LYNX Technik OTX 1910 L-Band Fiber Transmitter LC connectors

The OTX 1910 is an effective solution for transporting analog RF L-Band signals over long distances. LYNX Technik OTX 1910 module supports RF signals within the extended L-Band range of 700MHz to 2300MHz. The module is configured using the integrated dip switch. This allows the LNB power to be activated and switched to 13V or 18V to select horizontal or vertical polarization. Additionally, the internal 22kHz tone generator can be turned on and off to select the high or low frequency range. When paired with the fiber optic receiver for RF signals (yellobrik ORX 1900) you have a very cost effective optical RF transmitter/receiver system for distances up to 10km.

LYNX Technik OTX 1910 Features

Input frequency 700MHz – 2300MHz
L-Band output
LNB power selectable 13V/18V
22kHz on/off for LNB local oscillator control
Simplex LC/PC singlemode optical connection
Up to 10km (6.2 miles)

Model: OTX 1910

Write a review

Note: HTML is not translated!
   Bad           Good

LYNX Technik OTX 1910 L-Band Fiber Transmitter LC connectors

  • $1,695.00
