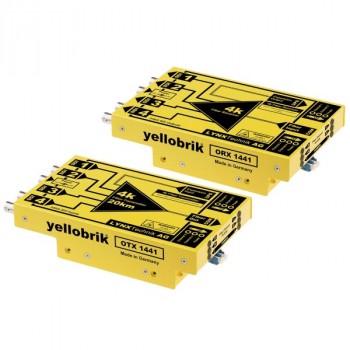

About: LYNX Technik OTR 1441 4k Fiber Transmission System LC connectors

The OTR 1441 is a self contained fiber transmission kit from LYNX Technik for the transport of 4 discreet SDI signals (or 4K / 12G uncompressed) over a single fiber link. LYNX Technik OTR 1441 includes the fiber transmitter, fiber receiver and power supplies. This is an ideal solution for the transmission of multiple uncompressed SDI streams, or 4K up to 20km with zero losses. Each SDI channel is fully independent. For 4K use the signal is split over 4 separate 3G SDI links (12G) and supports full 4K resolution at 60fps. The system can also be used for any combination of SDI signals, with a mix of formats and bit-rates if required. Each channel will automatically detect and reclock SDI bit rates of 270Mbit, 1.48Gbit and 2.97Gbit.

An expansion port is included for the connection of the OTR 1442 to add 4 more SDI channels (or 8K / 24G over a single fiber)

LYNX Technik OTR 1441 Features

Support for 4 independent 3G/HD/SD-SDI channels
Transport 4K (uncompressed) up to 20km (12 miles)
Each channel supports resolutions up to 1080p/60Hz
Each channel individually reclocked
Embedded audio / metadata support
Integrated expansion port to add more channels
LED indicators for channel activity and power
Kit includes transmitter, receiver and power supplies
Optional 19” Rack tray to mount (max) 4 modules

Model: OTR 1441
