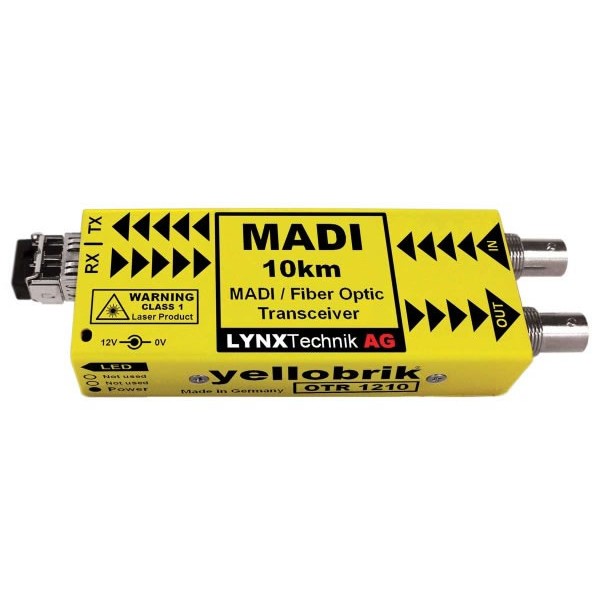

• LYNX Technik OTR 1210 MADI Fiber Transceiver

About: LYNX Technik OTR 1210 MADI Fiber Transceiver

The OTR 1210 is a MADI fiber transmitter and receiver combined in a single package. LYNX Technik OTR 1210 module is designed to convert up to 64 audio channels bi-directionally (64 IN & 64 OUT) between MADI Optical and MADI Coaxial (electrical) formats. Conversion is real time [no latency] and does not degrade the signal quality. The OTR 1210 is compact and cost effective solution to extend the reach of MADI audio over long distances. When paired with another OTR 1210 at the receiving end (using two fiber links) you have a cost effective, zero latency MADI extender system for distances up to 10km

Two versions are available. The singlmode fiber version will transport MADI over distances up to 10km, and the Multimode version up to 550m

LYNX Technik OTR 1210 Features

MADI Optical to MADI Coaxial converter
Supports up to 64 channels of audio (IN and OUT)
Real time conversion with no degradation of signal quality
Singlemode and Multimode versions
Up to 10km (6.2 miles) using Singlemode fiber
Up to 550m (1804 feet) using Multimode fiber
Duplex LC optical connections
Supports hot swapping and hot plugging

Model: OTR 1210

Write a review

Note: HTML is not translated!
   Bad           Good

LYNX Technik OTR 1210 MADI Fiber Transceiver

  • $525.00
