About: LYNX Technik greenMachine DUALTRANS Dual HD/Audio/Ethernet/GPI Bi-Directional Fiber Transport System

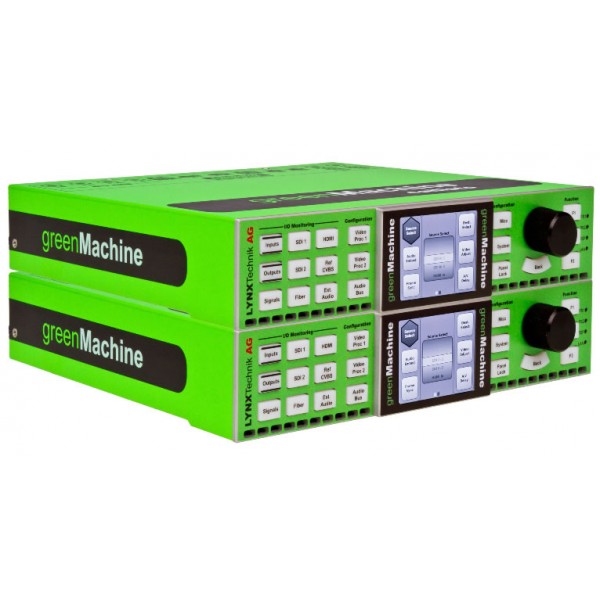

LYNX Technik greenMachine DUALTRANS Dual Transport includes two greenMachine Callisto hardware appliances, two Dual Transport APPs (one per greenMachine), four Frame Synchronizer APPs (one per transported video signal) and two MiniNova APPs. Additionally the package includes a set of bidirectional video transceiver SFP fiber modules as well as a set of bidirectional Ethernet transceiver SFP modules.
(The bidirectional SFP fiber modules have an integrated WDM multiplexing and demultiplexing allowing the bidirectional signals to be transported over one singlemode fiber cable.)

This package is a cost effective bidirectional transport solution for video, audio, Ethernet and GPI. It is a powerful and flexible solution for many Broadcast and ProAV applications that need to exchange multiple signals when a limited number of fiber links are available. The greenMachine Callisto hardware platforms are equipped with fully featured local control panels with LCD displays used for image previews and audio level meters in addition to supporting the local control interface. The package also includes two MiniNova APPs which allows the user design custom control surfaces for use on a PC or used wirelessly on an iPad. The MinNova also allows the greenMachine be remotely controlled and monitored via third party control systems.

This package is designed as a starter system. As the greenMachine is 100% APP driven, the functionality can be changed or augmented by simply downloading different APPs from the online LYNX GreenStore at any time.

Dual channel bidirectional transport solution
2x HD Video (or 1 x 3G Video) transport in both directions
SDI and HDMI I/O
4x Audio transport in both directions
2x GPI in both directions
1x 1Gbit Ethernet transport
Frame synchronizer per video channel
Robust “flywheel" frame synchronizer functionality
4 Audio inputs and outputs switchable between analog and digital
HDMI input and output
Included SDI and Ethernet bidirectional SFP modules for full signal transport with two singlemode fiber cables
Timed reference output
Integrated local control panel for configuration and monitoring
Extensive monitoring features such as image previews and audio level meters available on the local control panel and control software
Custom Control Panels
Full SNMP v2 support
Optional video and Ethernet CWDM fiber I/O with all 18 wavelengths selectable
Optional redundant power protection
Optional 19" rack frame

Model: DUALTRANS
