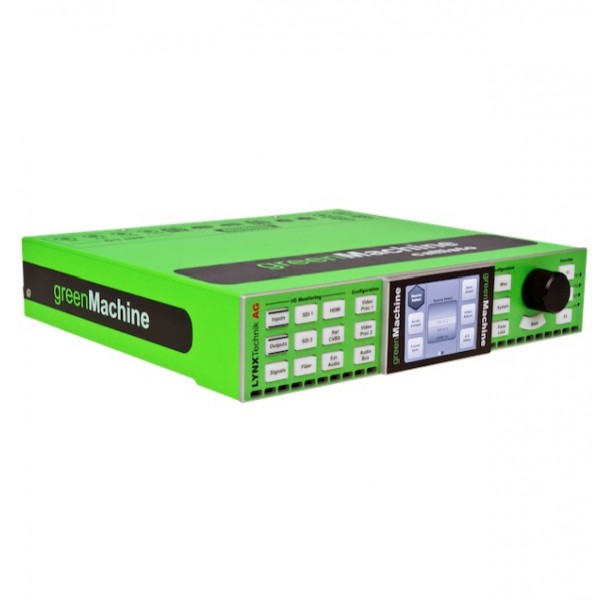

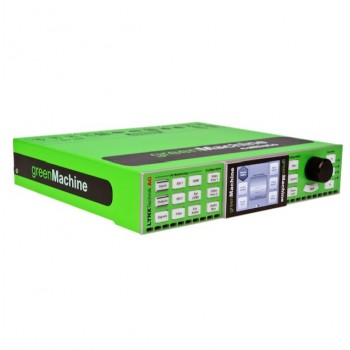

• LYNX Technik greenMachine DUALFS SD/HD/3G SDI Dual Channel SDI Frame Synchronizer

About: LYNX Technik greenMachine DUALFS SD/HD/3G SDI Dual Channel SDI Frame Synchronizer

LYNX Technik greenMachine DUALFS SD/HD/3G SDI Dual Channel SDI Frame Synchronizer designed for applications that require compact, robust and dependable broadcast quality frame synchronization with full audio processing capability. Any video input (SDI, HDMI or optional fiber) can be assigned to either video processing path. The audio processing capabilities are extensive. This solution de-embeds all audio as well as providing support for four external audio inputs or outputs which can individually be configured to be analog or digital signals. Multiple internal crossbars allow for extensive audio shuffling plus content aware audio processing, DolbyE synchronization, full audio processing and multiple adjustable user delays. The greenMachine Callisto hardware platform is equipped with a fully featured local control panel with an LCD display used for image previews and audio level meters in addition to supporting the local control interface.

The package also includes the MiniNova APP which allows the user design custom control surfaces for use on a PC or used wirelessly on an iPad. The MinNova also allows the greenMachine be remotely controlled and monitored via third party control systems. This package is designed as a starter system. As the greenMachine is 100% APP driven, the functionality can be changed or augmented by simply downloading different APPs from the online LYNX GreenStore at any time.

Dual channel frame synchronizer
Supports video formats up to 3Gbit (auto-detect)
Bi-Level or tri-level reference input, auto detect, cross lock compatible
Robust “flywheel" frame synchronizer functionality
Up to 30 frames of output delay per video channel
4 Audio inputs and outputs switchable between analog and digital
Up to 1.3s of programmable audio delay per audio pair
HDMI input and output
Test signal generator per video processing channel
Optional video fiber I/O, basic fiber or CWDM with all 18 wavelengths selectable
Optional Ethernet LAN Fiber connection (basic or CWDM)
Integrated local control panel for configuration and monitoring
Extensive monitoring features such as image previews and audio level meters available on the local control panel and control software
Custom Control Panels
Full SNMP v2 support
Full remote control using greenGUI control software
Optional redundant power protection
Optional 19" rack frame

Model: DUALFS

Write a review

Note: HTML is not translated!
   Bad           Good

LYNX Technik greenMachine DUALFS SD/HD/3G SDI Dual Channel SDI Frame Synchronizer

  • $3,595.00
