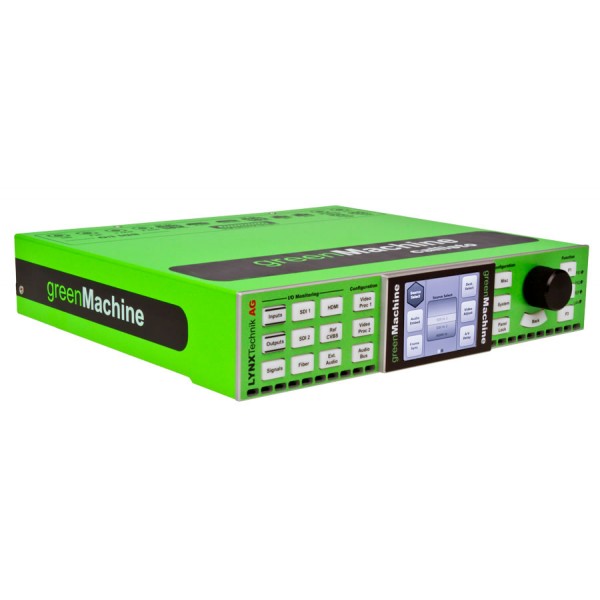

About: LYNX Technik greenMachine Callisto 6820 3G-SDI/HDMI Video Processing Platform

LYNX Technik greenMachine Callisto 6820 3G-SDI/HDMI Video Processing Platform providing a powerful self-contained FPGA processing engine where functionality is determined by running software apps. Think of it like a smart phone video processor! The combination of the greenGUI configuration software and the APPs are the real groundbreaking benefits of greenMachine. The greenGUI software (Windows and OSX compatible) is free to download and can be run in simulation mode to test and evaluate the software. APPs are selected and purchased individually by the user via the greenStore and can be combined in any combination on each signal channel and across an unlimited number of greenMachines.

Callisto, the first greenMachine in the range is a two channel 3G-SDI hardware device housed in a 1U, + rack frame. greenMachine Callisto can be used as stand-alone or rack mounted. One or two units may be mounted in the optional rackframe that also houses the on-board PSUs. Only two PSUs are required to provide full redundancy for two greenMachines by connecting a link cable between modules.

Callisto will soon be joined by titan, a four channel 4K capable unit, then followed by Callisto IP and Titan IP. All units accommodate up to 3G-HD-SDI, analog or AES audio and HDMI in/outputs, with video cross-point switching at the input and output.

Small footprint: 1RU high x half 19" rack width
2x electrical SD/HD/3G SDI inputs. Level A and Level B DL
2x electrical SD/HD/3G SDI outputs. Level A and Level B DL
1x HDMI input (1.4a) and 1x HDMI output (1.4a)
1x Analog reference input (bi-level or tri-level sync)
1x Analog reference (bi-level or tri-level sync) or CVBS composite video output
1x Electrical LAN I/O connection
4x Balanced analog audio or digital AES Audio inputs
4x Balanced analog audio or digital AES Audio outputs
2x GPI inputs and 2x GPI outputs
1x Optional SDI fiber I/O (basic fiber or CWDM)
1x Optional Ethernet LAN Fiber connection (basic or CWDM)
Optional redundant power protection
Optional 19" rack frame
Full remote control using greenGUI control software
Full SNMP V2 support

Model: GM6820
