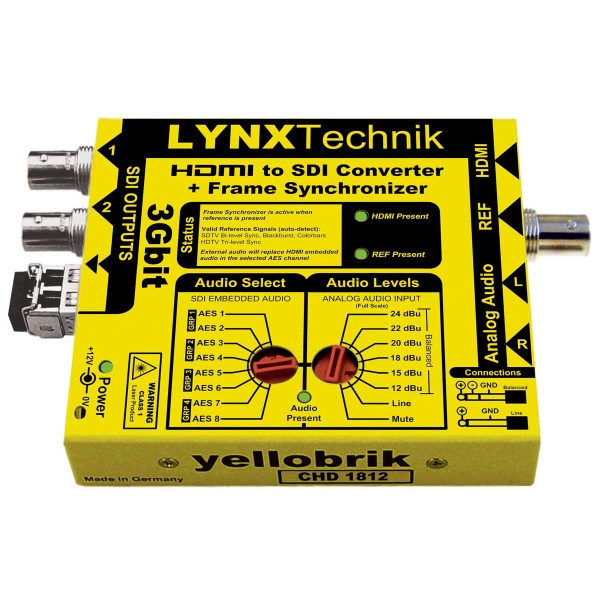

• LYNX Technik CHD 1812-1 Compact HDMI to SDI Converter with Frame Synchronizer

About: LYNX Technik CHD 1812-1 Compact HDMI to SDI Converter with Frame Synchronizer

The CHD 1812-1 is a versatile and compact HDMI to SDI converter from LYNX Technik. It's integrated frame synchronizer is an ideal solution for any application which requires a fully synchronized SDI input from an external asynchronous HDMI source. The flexible reference sync input will accept any analog video sync format including SD bi-level sync, black burst, colorbars and tri-level HD sync. The sync input is auto detecting and fully cross lock compatible. For example: An SDTV reference can be used to frequency lock an HD HDMI input. If no reference is present, the converter performs a standard asynchronous HDMI to SDI conversion. A pair of stereo analog inputs can be embedded into any AES channel. Audio inputs can be either professional balanced audio with selectable full scale level, or unbalanced consumer line level audio. By default any audio present in the HDMI stream will be embedded into the SDI output or it can be replaced with the external audio signals.

LYNX Technik CHD 1812-1 Features:

SDI video output formats up to 3Gbit (1080p60)
3G SDI Level A and Level B support
Support for single link 3D formats
Integrated Frame Synchronizer
Multi-format sync reference input – cross lock compatible
2 x SDI outputs with optional SDI fiber output
HDMI embedded audio passed transparently
2 x external analog audio inputs
Professional balanced analog audio inputs or unbalanced line level audio inputs
Selectable AES channel for embedding external audio
HDMI, reference and audio present LED indication
yelloGUI compatible to access additional internal settings

Model: CHD-1812-1

Write a review

Note: HTML is not translated!
   Bad           Good

LYNX Technik CHD 1812-1 Compact HDMI to SDI Converter with Frame Synchronizer

  • $1,150.00
