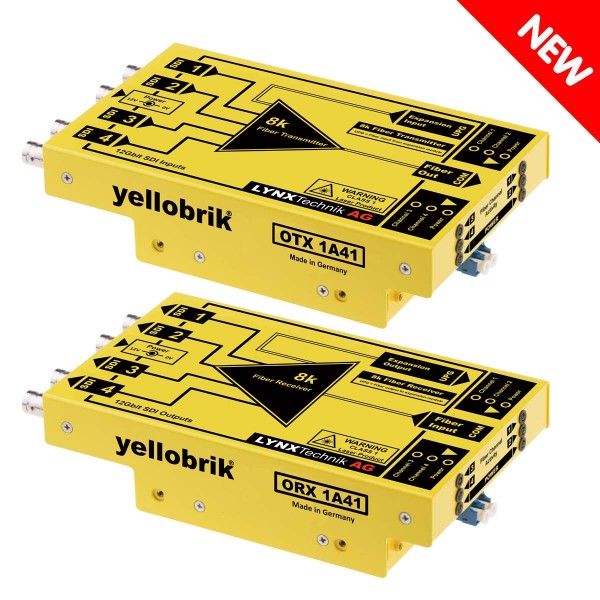

About: LYNX Technik 8K Fiber Transmission System OTR 1A41

LYNX Technik 8K Fiber Transmission System OTR 1A41 each SDI channel is fully independent for 8K use, the signal is split over 4 separate 12G SDI links (48G) and supports full 8K resolution at 60fps. The system can also be used for any combination of SDI signals, with a mix of formats and bit-rates if required. Each channel will automatically detect and reclock SDI bit rates of 270Mbit, 1.5Gbit, 3Gbit and 12Gbit. LED Indicators are provided for channel presence and power. An optional 19” rack mount tray is available which can accommodate up to 4 modules (RFR1018).

Note: Internal CWDM optical multiplexing is utilized within the modules. This kit should be considered a self contained point to point solution and should not be integrated into external CWDM systems.

Features

Kit includes transmitter, receiver and power supplies
Optional 19” Rack tray to mount (max) 4 modules
Support for 4 independent 12G/3G/HD/SD-SDI channels
Transport 8K (uncompressed) signals
Each channel supports resolutions up to 2160p/60Hz
Each channel individually reclocked
Embedded audio / metadata support for each channel
Integrated expansion port to add more channels
LED indicators for channel activity and power
