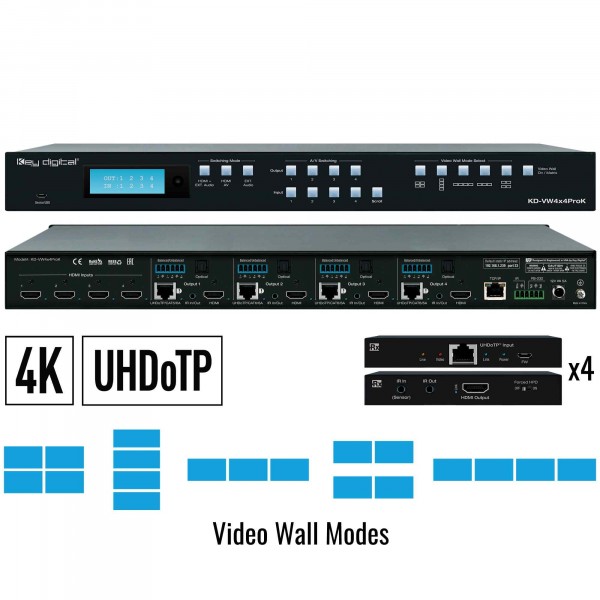

About: Key Digital KD-VW4x4ProK Video Wall Processor Matrix Quad HDMI

Key Digital KD-VW4x4ProK Video Wall Processor Matrix Quad HDMI offering 4 HDMI Inputs 4 Outputs Transform consumer and professional displays into a video wall with five video wall modes: 2x2, 4x1, 3x1, 2 sets of 2x1, 1x4 with Seamless Switching: Un-interrupted screen transitions during source selection. Built-In UHDoTP Tx with PoC: 4 included KD-EXMLVRx units are powered by KD-VW4x4ProK Dual Video Wall Mirrored Outputs: Simultaneously active HDMI + UHDoTP connections per output show same AV signal at same time for a total of 8 possible displays connected Video Resolution: Up to 3840 x 2160p 4:2:0 at 60fps supported on inputs & 3840 x 2160p 4:4:4 at 30fps supported on

Features

outputs Panel Flip: Enables use of consumer displays by mounting top row upside down and conjoining narrow frame sides.
Bezel Compensation: Create a fluid screen transition by removing pixels from top, bottom, left and right border independently
Signal Extension over CAT: 4K/UHD Up to 35m (115ft) using CAT5e/6, up to 40m (131ft) using CAT6A STP, 1080p Up to 50m (164ft) using CAT5e/6, up to 60m (197ft) using CAT6A STP
Text Overlay: Assigned name of each source may be displayed in each window. 16 Characters maximum with variable sizing and location settings.
4K Down-Convert: Integrate 4K sources with legacy 1080p & 720p displays
Built-In Test Patterns: 9 selectable test screens help expedite installation
IR Extension: Extend IR via Rx units to control displays or collect IR from remote to control a source at matrix
Web UI: Control AV routing and other basic functions from any web browser
Audio De-Embed: 6 pin balanced / un-balanced and digital optical outputs
Dolby Digital® & DTS™ Audio: Supports 2-channel and multi-channel surround formats up to 5.1 Dolby® / DTS™
Control: Front panel buttons, IR, RS-232, TCP-IP and Web Control
Key Digital® App Ready: Can be controlled over TCP/IP via Key Digital® App
Control System Support: Key Digital® app ready. Key Digital Management Software™ Pro (KDMS™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.

Model: KD-VW4x4ProK

Key Digital KD-VW4x4ProK Video Wall Processor Matrix Quad HDMI

Brands Key Digital
Product Code:KD-VW4x4ProK
Availability:In Stock
