About: iWave Zynq Ultrascale+ SoC Development Kit iW-RainboW-G35D

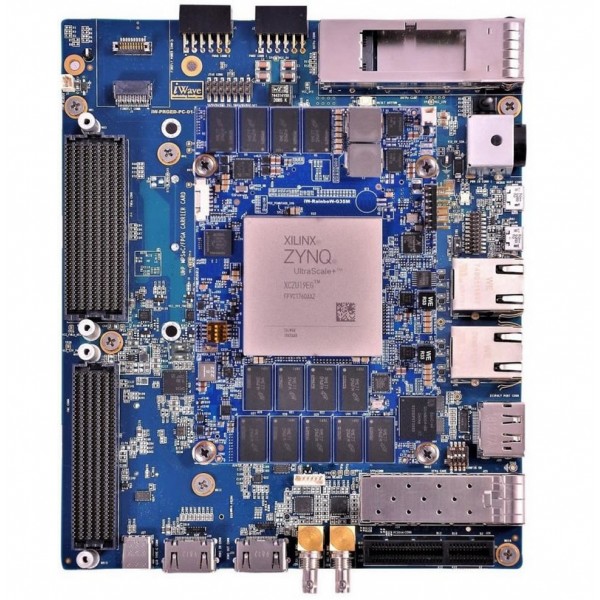

iWave Zynq Ultrascale+ SoC Development Kit iW-RainboW-G35D carrier board supports required set of features like FMC+ (HPC), FMC (HPC), FireFly, QSFP, SFP+, 12-Pin Pmod, and HDMI- IN/OUT connectors to validate Zynq Ultrascale+ MPSoC high-speed PL interfaces and PCIe x4, SATA, USB-Type-C, Display Port, Gigabit Ethernet and SDI Video IN/OUT on-board connectors to validate the Zynq Ultrascale+ MPSoC high-speed PS interfaces.Applications: Artificial intelligence, Broadcast audio/video, HPC, Deseggregarted computing, 5G wireless, 100G connectivity
Features:
100G Ethernet though QSFP28/QSFP+ Connector
112G FireFly Connector
10G Ethernet through SFP+ Connector
12G SDI Video IN through HD BNC Connector
12G SDI Video OUT through HD BNC Connector
4K HDMI 2.0 IN through HDMI Connector
4K HDMI 2.0 OUT through HDMI Connector
Dual FMC High Pin Count (HPC) Connector
DP 1.2a Display Port Connector
PCIe Gen2 x4 & M.2 SATA 3.1 Connector
USB 3.0 OTG through TypeC Connector
Dual Gigabit Ethernet through RJ45MagJack
USB2.0 OTG through MicroAB Connector
Standard SD & Dual PMOD Connector
CAN Header & 20 Pin Header (for PS IOs)
Operating Temperature: -20°C to +85°C
Form Factor : 140mm x 170mm
Model: iW-RainboW-G35D
iWave Zynq Ultrascale+ SoC Development Kit iW-RainboW-G35D
- Brands iWave
- Product Code:iW-RainboW-G35D
- Availability:Call for Price
-
$0.00
