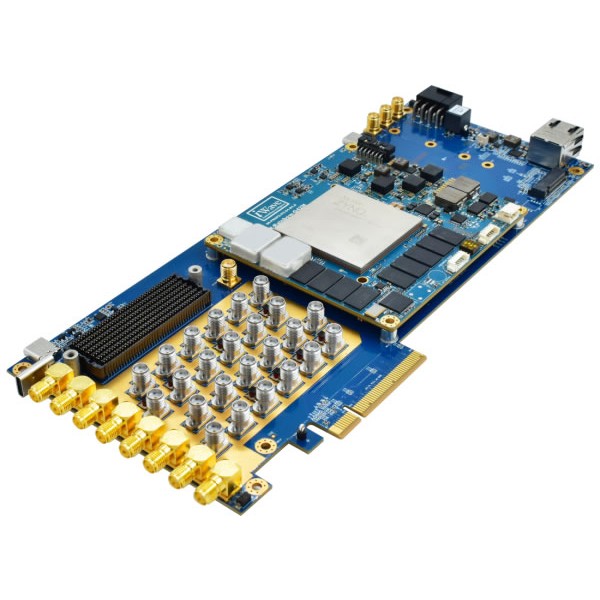

About: iWave Zynq UltraScale+ RFSoC PCIe Development Kit iW-RainboW-G42P

iWave Zynq UltraScale+ RFSoC PCIe Development Kit iW-RainboW-G42P offering PCIe-based RFSoC Carrier board. The SOM is equipped with a 64-bit 8GB DDR4 RAM with 8-bit ECC for the PS (Processing System) and a 64-bit 8GB DDR4 RAM for the PL (Programmable Logic). The Zynq UltraScale+ RFSoC development kit carrier board is equipped with 4 right- angle SMA connectors, 12 straight-angle SMA connectors, and balun circuits to validate the ADC (Analog-to-Digital Converter) interface, as well as 4 right-angle SMA connectors, 12 straight-angle SMA connectors, and balun circuits to validate the DAC (Digital-to-Analog Converter) interfaces.

Additionally, a required set of features, including an HPC FMC+ connector, a DisplayPort connector, an M.2 NVMe PCIe connector, and a Gigabit Ethernet connector. These features are designed to validate high-speed PL & PS interfaces.

Applications: 5G and LTE Wireless, satellite communication, Aerospace & Defense.

Features:

AMD Xilinx’s ZU49/39/29DR Zynq Ultrascale+ RFSoC
RAM Bandwidth
8GB, 64bit DDR4-2400 RAM with ECC for PS
8GB, 64bit DDR4-2666 RAM for PL (Expandable)
16 DAC channels through SMA connector upto 10Gsps
16 ADC channels through SMA connector upto 2.5Gsps
3/4 Length PCIe Gen3 x8 Host Interface
Integrated ultra low-noise programmable RF PLL
Integrated SyncE & PTP Network Synchronization
NVMe PCIe Gen2 x2/x4 M.2 Connector
FMC+ HSPC Connector
