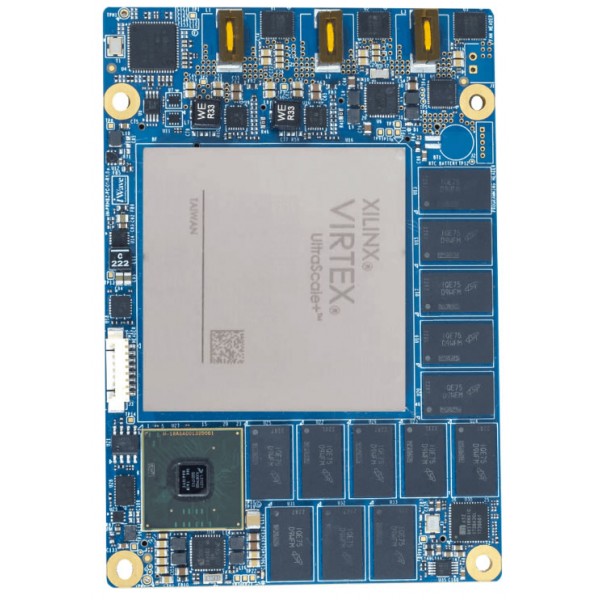

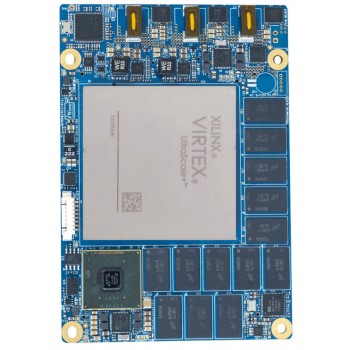

About: iWave Xilinx Virtex UltraScale+ SOM iW-RainboW-G52M
iWave Xilinx Virtex UltraScale+ SOM iW-RainboW-G52M offering the highest performance, bandwidth, and reduced latency required for compute-intensive applications, such as data centers, Test and Measurement, 400G and Terabit Wired Communications, and Aerospace and Defense markets.Features:
Xilinx Virtex UltraScale+ FPGA with B2104 Package
Compatible with VU13P, VU11P, VU9P, VU7P, VU5P, VU160, VU190, VU125, VU080, VU095, KU19P, KU095, KU115 device with B2104 package
Dual 4GB DDR4 (64-Bit) with ECC for FPGA
2GB DDR4 for FPGA (32bit)
76 channels of GTY transceivers up to 32Gbps
120 LVDS/ 240 SE FPGA Ios
OSM module with Size-M
Industrial Grade Availability
10+ Years long term support
PCIe x2 Gen3
RGMII x1
SPI x1
UART x1(optional)
TPM2.0 module
Temperature Sensor
Clock Synthesizer for On-SOM Clocks and FPGA GTY
10G Ethernet PHY Transceiver
2:1 JTAG MUX switch
Fan Header
Model: iW-RainboW-G52M
iWave Xilinx Virtex UltraScale+ SOM iW-RainboW-G52M
- Brands iWave
- Product Code:iW-RainboW-G52M
- Availability:Call for Price
-
$0.00
