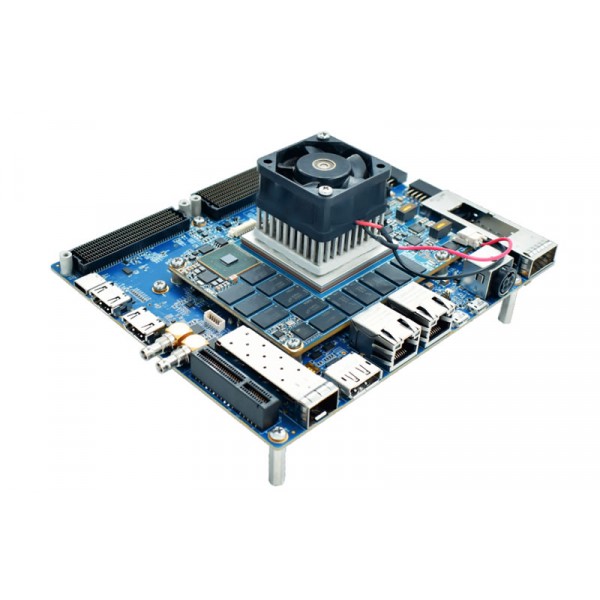

iWave Virtex UltraScale+ FPGA SOM Development iW-RainboW-G47D supports four Board to Board mating connectors for Virtex UltraScale+ FPGA SOM attachment. This Board-to-Board connector are capable of handling high-speed serialized signals and can be used for size constrained embedded applications.Virtex UltraScale+ FPGA offering PCIe Gen2 Interface through Serdes Lanes of LS1021A Processor. The SerDes lane2 and Lane3 from Board-to-Board Connector1 is connected to PCIex4 connector to support PCIe x1 or PCIe x2 Interface. The SerDes Lane selection to PCIe connector is done through Selection Switch (SW6), refer Table 3 for proper Lane selection.
CPU Interface Features:
PCIe x4 Connector x 1
M.2 SATA Connector x1
Gigabit Ethernet through RJ45MagJack x 1
USB2.0 OTG through Micro AB Connector x 1
USB 3.0 through Type-C Connector x 1
Debug UART through USB Micro AB Connector x 1
FPGA Interface:
QSFP28/QSFP+/QSFP Connector x 1
FireFly Connector x 1
SFP+ Connector x 1
SDI IN/OUT Connector x1
HDMI IN/ OUT Connector x 1
SMA Connector x 2
FMC High Pin Count (HPC) Connector
10 GTY High Speed Transceivers
2 GTY Reference Clock
Up to 15 LVDS IOs/31 Single ended (SE) IOs from HP Bank
2 Clock Input Capable LVDS/4 SE pins from HP Bank
2 Clock Output Capable LVDS/5 SE pins from HP Bank
Model: iW-RainboW-G47D
