• iWave Stratix 10 SoC FPGA SOM iW-RainboW-G45M

About: iWave Stratix 10 SoC FPGA SOM iW-RainboW-G45M

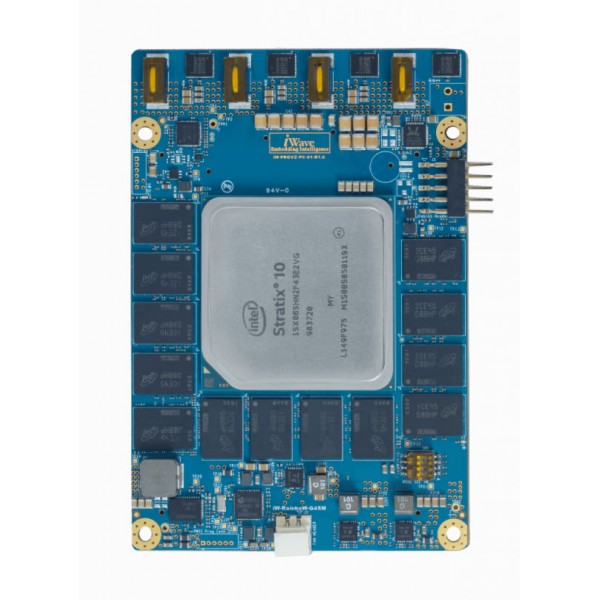

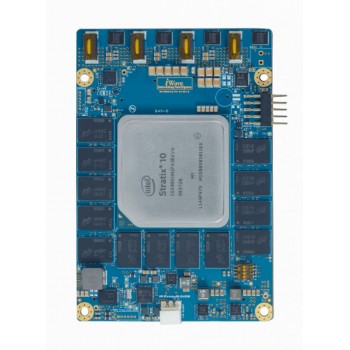

iWave Stratix 10 SoC FPGA SOM iW-RainboW-G45M features the SX SoC FPGA Family devices - SX850, SX1100, SX1650, SX2100, SX2500 and SX2800 supports a Hard Processor System comprising of Quad-core 64-bit ARM Cortex-A53 up to 1.5GHz and Intel Stratix 10GX FPGA Family devices. The Intel Stratix 10 SX SOM features 64-bit DDR4 for HPS with ECC and 2 x 64bit DDR4 for FPGA, USB2.0 PHY, Gigabit Ethernet PHY, eMMC and QSPI on SOM. USB2.0, Gigabit Ethernet, FPGA IOs and 48 High speed transceivers are made available to the Carrier Board through High-Speed Board to Board Connectors. The GXT Transceivers on Board are capable of supporting up to 28.3Gbps speed.

Furthermore, the SOM features SMARTVID feature that adjusts the voltage as per the temperature and performance requirements thus lowering the Power Consumption of the device.

Features:

Quad-Core 64bit ARM Cortex -A53 with MPU up to 1500MHz
32GB eMMC Flash (Upgradable)
1Gb QSPI Flash (Upgradable)
8GB DDR4 for HPS with ECC (64bit + 8bit) (Upgradable)
2 x 8GB DDR4 for FPGA (64bit + 64bit) (Upgradable)
On SOM Gigabit Ethernet PHY
Industrial Grade availability

Model: iW-RainboW-G45M

Write a review

Note: HTML is not translated!
   Bad           Good

iWave Stratix 10 SoC FPGA SOM iW-RainboW-G45M

  • Brands iWave
  • Product Code:iW-RainboW-G45M
  • Availability:Call for Price
  • $0.00
