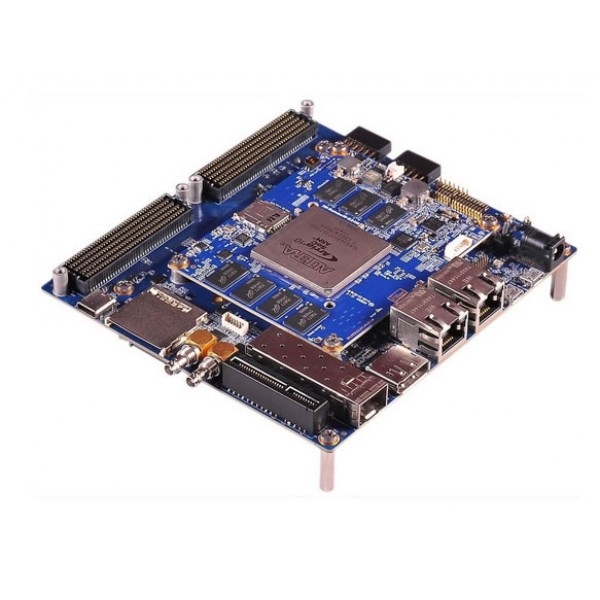

• iWave Arria 10 SoC/FPGA Dual FMC Development Kit W-RainboW-G24D

About: iWave Arria 10 SoC/FPGA Dual FMC Development Kit W-RainboW-G24D

iWave Arria 10 SoC/FPGA Dual FMC Development Kit W-RainboW-G24D enables,customers to develop rapid prototypes and validate the highspeed interfaces and I/Os. The SOM is equipped with 4GB DDR4 RAM (64bit) from FPGA and 2GB DDR4 SDRAM (32bit) with ECC from HPS (Expandable). Arria10 SoC / FPGA Development Kit Carrier board supports wide range of highspeed interfaces like FMC (HPC) Connectors, SATA, SFP+, PCIex4 connector, SFP, Display port, SDI IN & OUT connectors to validate Arria10 FPGA high speed transceivers and other on-board connectors to validate Arria10 SoC (HPS) interfaces

APPLICATIONS: Test and measurement equipment, Control and intelligence equipment, Diagnostic medical imaging equipment, Wireless infrastructure equipment, Compute and storage equipment, Broadcast and distribution equipment.

Features:

10G Ethernet through SFP+ Connector
PCIe Gen3 x 1 Connector
Dual FMC High Pin Count (HPC) Connector
Gigabit Ethernet through RJ45MagJack
USB2.0 OTG through MicroAB Connector
Dual PMOD Connector
20 Pin Header (for PS IOs)
Debug UART through USB MicroAB Connector
RTC Coin Cell Holder
Operating Temperature: -20°C to +85°C
Form Factor: 130mm x 140mm

Model: iW-RainboW-G24D

Write a review

Note: HTML is not translated!
   Bad           Good

iWave Arria 10 SoC/FPGA Dual FMC Development Kit W-RainboW-G24D

  • Brands iWave
  • Product Code:iW-RainboW-G24D
  • Availability:Call for Price
  • $0.00
