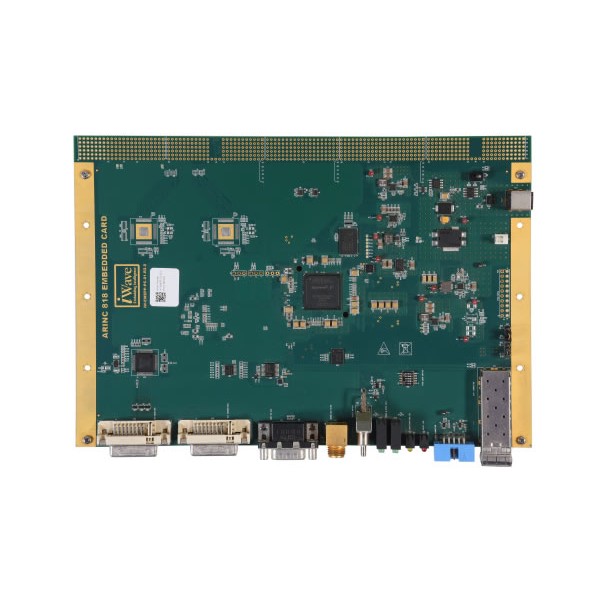

About: iWave ARINC 818 to DVI Converter

iWave ARINC 818 to DVI Converter offering a rugged standalone module available in 6U cPCI form factor used for ARINC 818 to DVI conversion, DVI to ARINC818 conversion, ARINC 818 Mux as well as ARINC 818 Duplicator either on front panel or via cPCI back panel. It is a video Converter module designed with Cyclone V GT FPGA, using Analog device Video Encoder, and Decoder to provide video interfacing requirements.

Features:

ARINC 818 Input/Output over Optical Fiber or 75-Ohm/100-Ohm/150-Ohm Copper transmission medium
DVI and ARINC 818 can be configured over the front panel or via a backplane depending on the requirement
Power consumption <3W
Quick customization as per customer Interface Control Document (ICD)
Transmission Medium: Optical Fiber or 75-Ohm/100-Ohm/150-Ohm Copper Medium
Video-Input/Output: Either can be through backplane or on-board DVI & SFP/Quadrax Connectors
Supports both progressive & interlaced video up to Full HD @ 60fps
Supported Configurations:
ARINC 818 to DVI Conversion
DVI to ARINC 818 Conversion
2x ARINC 818 Duplicator/Splitter
2x ARINC 818 Switch
Cooling Method: Conduction-Cooled
6U form factor cPCI MIL Grade board
Operating Temperature: Industrial Grade (-40 °C to +85 °C)
