About: iWave ARINC 818 Tester

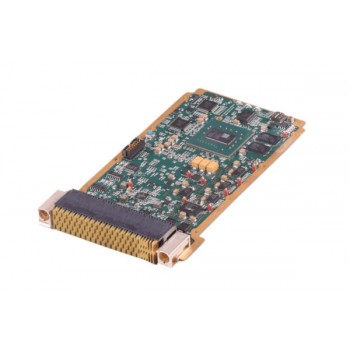

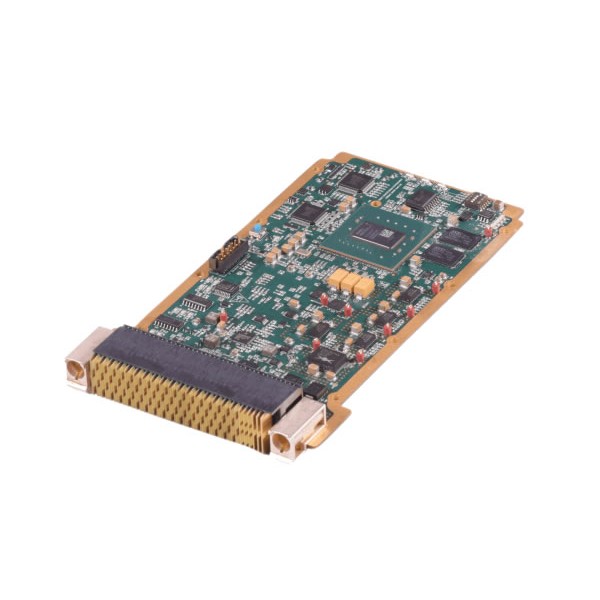

iWave ARINC 818 Tester aimed for the high-speed data, video processing, and display applications is ideal for military, defense, and aerospace applications requiring an optimal balance of performance and power efficiency. iWave 3U VPX High-Speed Video/Data Processing Card is implemented using Xilinx Kintex-7 device architecture and has I/O interfaces including High speed 16 channels of transceiver interfaces capable of operating up to 6 Gbps data rate, Gigabit Ethernet, RS232, RS422, PCIe interface, Built-in health monitoring circuits, HDMI input, and output interfaces

Features:

FPGA Xilinx Kintex 7
4Gb 32-Bit DDR3 SDRAM
Health Monitoring built-in test circuitry (P -bit, I-bit, C-bit)
Watchdog Monitor
Temperature Sensor
JTAG Connector
Real-Time Counter
16 pairs High-speed transceiver channels operating speed up to 6 Gbps
PCIe Gen2 up to x4 lane interface as per VITA 46.4 standard
HDMI 1.4a Input
HDMI 1.4a Output
1 Gigabit Ethernet
RS232
RS422
SPI
JTAG Header
TTL input and output
I2C
100mm x 160mm (as per 3U form factor VITA46.0 and VITA46.4 standard)
Industrial Grade (-40 to 85 degree Celsius)
