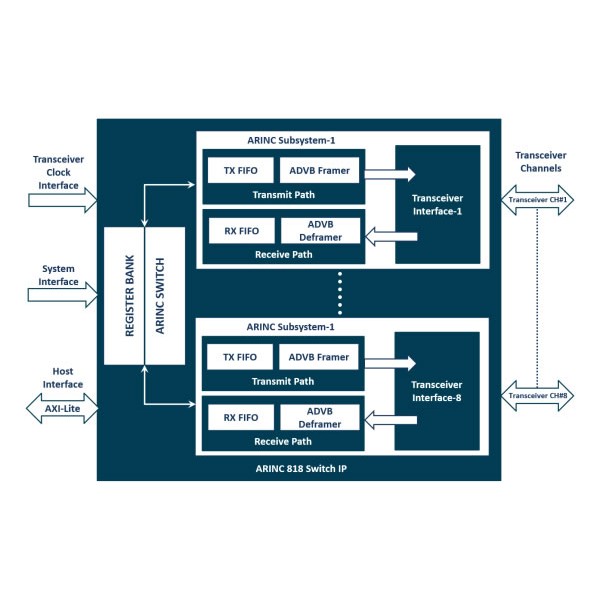

About: iWave ARINC 818 Switch IP Core

iWave ARINC 818 Switch IP Core is a point-to-point, serial protocol, high bandwidth, low latency protocol for the transmission of uncompressed video, audio, and data during blanking period, widely used in AVIONICS application. Since a vast portion of the newer applications of the ARINC 818-2 have several displays with many channels of ARINC 818-2, switching has turned out to be more imperative. ARINC 818-2 switch can support up to 12 channels. Multiple switching modes such as broadcast, unicast, multicast, and mixed are also supported.

IP Compliant to ARINC 818-2 specification:

• Video TX and RX interface: Simple Streaming Interface
• Supports link rates up-to FC 4x
• Supports Progressive and Interlaced Video Formats
• Supports Monochrome, RGB, RGBA and YCbCr Color Formats
• Supports Real-time link Control & Monitor through Web Browser
• Supports 8 Optical Transmitter / Receiver each capable of line rate up to 4.25Gbps
• Supports following Transmission Methods:

Broadcast: One video information is directed to all or numerous video output
Unicast: A video information is sent from one point to another point
Multicast: A video data is diverted to at least two video outputs
Mixed: Client can reroute any video input to any video output

Licensing Options

Non-Transferable: Single Project/Product Netlist License – Single Site
Non-Transferable: Multi Project/Product Netlist License – Single Site
Non-Transferable: Single Project/Product RTL Source Code License – Single Site
Non-Transferable: Multi Project/Product RTL Source Code License – Single Site
