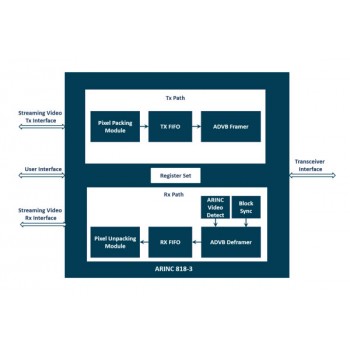

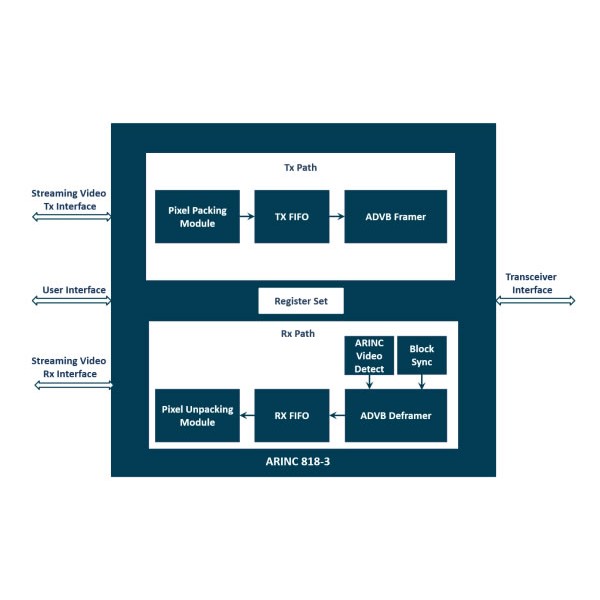

About: iWave ARINC 818-3 IP Core

iWave ARINC 818-3 IP Core standard provides 64B/66B schemes to support high-speed ARINC applications having data rates up to 28Gbps. Display emulation for testing, low latency guidelines, and fixing typographic errors to previous versions was new in this specification. ARINC 818-3 offers higher data rates and encoding for high-resolution real-time avionics video.

Features:

Provides 64B/66B encoding for extreme high-speed ARINC 818 applications: 14.025 Gb/s, 21.0375 Gb/s, and 28.05 Gb/s.
ARINC 818-3 adopts fiber channel for 64B/66B encoding and 256B/257B encoding
We offer ARINC 818-3 protocol embedded conversion cards
IP Compliant to ARINC818-3 specification
Video TX and RX interface: Simple Streaming Interface
Transmission Medium: Optical
Link Rate Supported: 16x, 24x & 32x
Video Resolution Supported: Resolution up to 4K @ 60fps
Video Type: Progressive Scan, Interlaced
Pixel Format supported: Monochrome, RGB, YCbCr, RGBA
Configurable Pixel Aspect ratio supported
Configurable Frame Rate supported
Packing Table Number supported
8-bit Components, four components per transmission word
Pixel Array Order supported
Left to Right, Top to Bottom
Line Synchronous Mode supported

Applications:

• Avionics Cockpit Display System like HUD/MFD
• Mission Computer
• Video Concentrator etc.
