About: iWave ARINC 818-2 IP Core

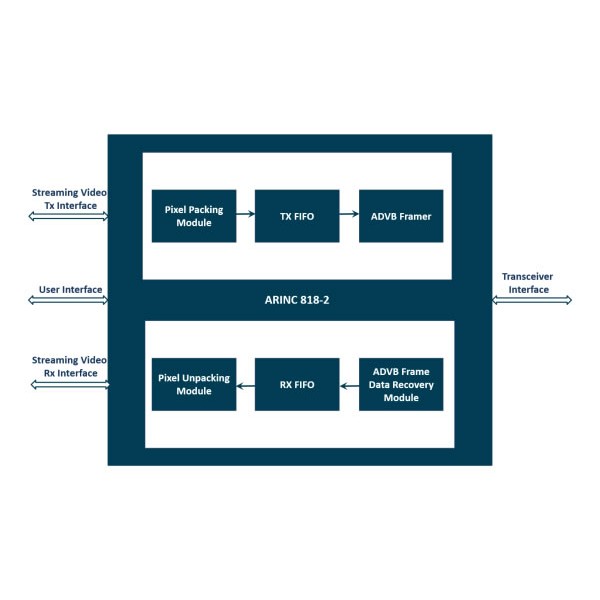

iWave ARINC 818-2 IP Core compliant offering point-to-point, high-speed, low latency video transmission. This IP core can be implemented on any transceiver-based FPGA device. It can be used for both transmit and receive applications. This core supports configurable ADVB video formats and uses a simple streaming interface to interface with video & image processing IP cores supported by FPGA vendors.

IP Compliant to ARINC 818-2 specification:

Video TX and RX interface: Simple Streaming Interface
Custom data transmission & reception during video blanking period
Supports Progressive and Interlaced Video Formats
Supports video resolutions up-to 4k @60fps resolution
Supports Monochrome, RGB, RGBA and YCbCr Color Formats
Supports all Pixel Aspect Ratio
Supports 8-bit Components, four components per transmission word
Supported Pixel Array Order: Left to Right, Top to Bottom
Supports Line Synchronous Mode
Supports Link Rates up-to FC 12x
User configurable parameters as per ICD requirement
No. Of Rows
No. Of Columns
Video Format Code
Pixel Aspect Ratio
Video Frame rate
Color Information Code

Licensing Options

Non-Transferable: Single Project/Product Netlist License – Single Site
Non-Transferable: Multi Project/Product Netlist License – Single Site
Non-Transferable: Single Project/Product RTL Source Code License – Single Site
Non-Transferable: Multi Project/Product RTL Source Code License – Single Site
