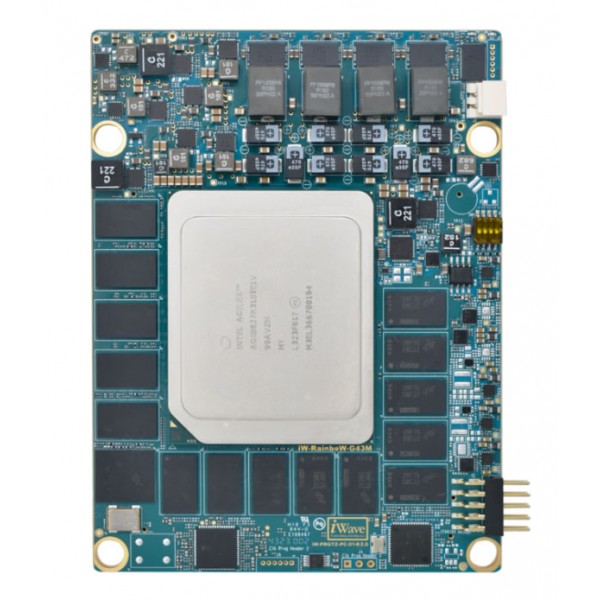

About: iWave Agilex 7 SoC FPGA SOM iW-RainboW-G43M
iWave Agilex 7 SoC FPGA SOM iW-RainboW-G43M offers 8GB DDR4 with ECC for HPS (64bit + 8bit) and 2 x 8GB DDR4 with ECC for FPGA (64bit + 8bit), USB2.0 PHY, Gigabit Ethernet PHY, eMMC and QSPI on SOM and On SOM PTP & SyncE Network Synchronizers. The SOM Supports 64 x FGT transceivers up to 58Gbps speed and 8 x FHT transceivers up to 112Gbps speed.Features:
Quad ARM Cortex A53 Processor
R31B/R31C Package With 4 x F-Tile
32GB eMMC (Expandable)
8GB DDR4 with ECC for HPS (64bit + 8bit)
2 x 8GB DDR4 with ECC for FPGA (64bit + 8bit)
64 x FGT transceivers up to 58Gbps
8 x FHT transceivers up to 116Gbps
On SOM PTP & SyncE Network Synchronizers
FPGA IOs (Up to 126LVDS/252SE)
10+ Years long term support
Model: iW-RainboW-G43M
iWave Agilex 7 SoC FPGA SOM iW-RainboW-G43M
- Brands iWave
- Product Code:iW-RainboW-G43M
- Availability:Call for Price
-
$0.00
