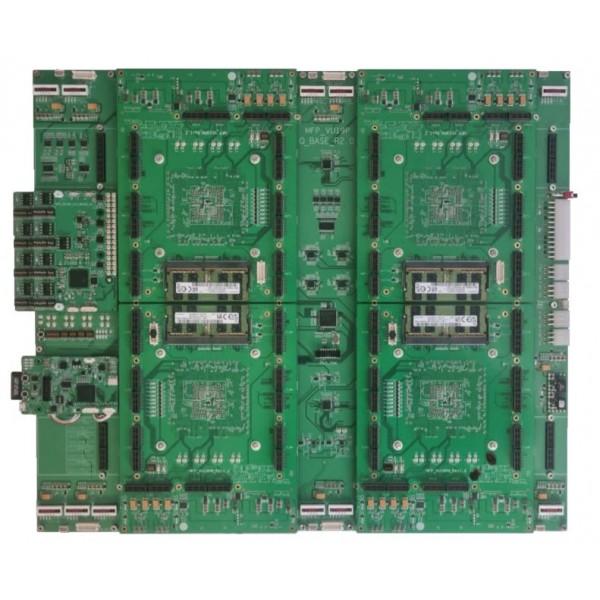

About: Huins MFP-VU19P-Q 4 Xilinx Virtex Ultrascale+ FPGA Module Base Board
Huins Virtex UltraScale+ MFP-VU19P-Q Quad FPGA SoC/ASIC Rapid Prototyping System provides programming and a wide range of FPGA gates (48 million asic gates) for various applications.Features:
Composed of four Virtex® UltraScale+™ VU19P FPGA modules and Base Board
FPGA Module (Virtex® UltraScale+™ XCVU19P-FSVA3824 Chip mount)
Base board capable of mounting four MFP-VU19M modules
Baseboard 4 119pin extension connectors
DDR4 So-DIMM (supports up to 32GB)
FPGA JTAG & SelectMap Configuration SD card
Clock 4 Differential Signals and 4 Single Ended Signals, 8ea Clock
GTY Lane Connector 12ea
Supports up to 11 individually adjustable Vccos
Power/Reset/Config control by USB (Remote bit file download & control, option)
MFP-Series Daughter Module Compatible
Model: MFP-VU19P-Q
Huins MFP-VU19P-Q 4 Xilinx Virtex Ultrascale+ FPGA Module Base Board
- Brands Huins
- Product Code:MFP-VU19P-Q
- Availability:Call for Price
-
$0.00
