About: Flock Audio PATCH LV DANTE Enabled Connections

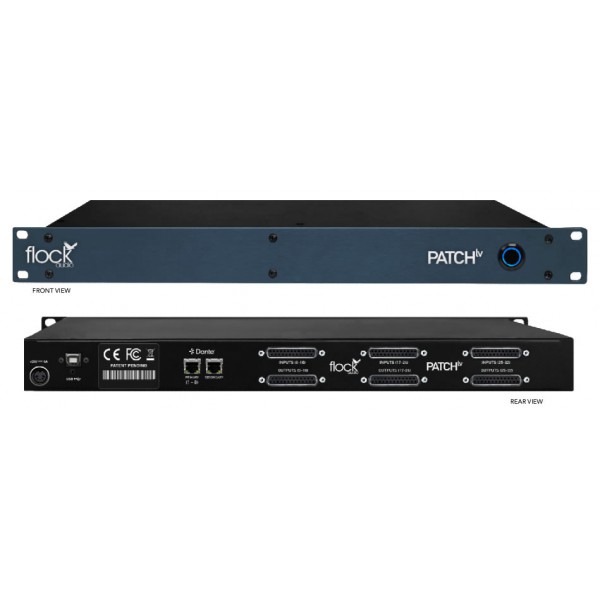

Flock Audio PATCH LV with DANTE Enabled Connections offering the live sound industry as the first-ever digitally controlled analog routing solution. Featuring 24 channels of Flock Audio's award-winning, multi-patented analog routing technology along with 16 Channels of DANTE. PATCH LV empowers Live Sound Engineers to seamlessly integrate analog hardware into live applications. Delivering unparalleled performance with minimal AD/DA conversion and virtually no latency, it sets a new standard for live audio systems.

Features:

64 Point Connections (Total)
(8 Inputs / 8 Outputs - DANTE Enabled Connections) 192 kHz / 32 Bit
(24 Inputs / 24 Outputs - Fully Analog PATCH Series Routing)
DB-25/D-SUB Tascam Standard Pinout Format Connectors (24 Ins x 24 Outs)
PATCH APP Routing Software (OSX & Windows)
Create, Store & Recall Routings in Seconds
Create Complex Multing Combinations w/ No Impedance Issues
No AD/DA Conversion, 100% Transparent Analog Signal Path (24 Ins x 24 Outs)
Patented Flock Audio Matrix Technology (24 Ins x 24 Outs)
Multiple Unit Expansion via DANTE for Larger I/O Systems
External 5Pin 24VDC Locking Power Supply w/ IEC Cable Included
Threaded Locking USB Connector w/ 10 Ft. - USB 2.0 (USB-A to USB-B) - Cable Included
Unit Dimensions: 1U - 1.75”(H) x 19” (L) x 8” (D) - 15 lbs
